for Vet Digital one channel ECG machine

FOB Reference Price:Get Latest Price
US $199-599 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pathological Analysis Equipments
Brand Name:
Sunbright
Place of Origin:
Shanghai, China (Mainland)
Model Number:
V-8012
display:
3.5 inch color LCD display
Lead:
Standard 7 leads
ECG files:
250 CASES
Communication with PC:
yes
work mode:
AUTO, Manual and Rythm
filters:
HUM,EMG and ADS
Battery:
Built-in rechargeable Ni-MH battery
Supply Ability
Supply Ability:
20000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Air-worthy packing, Sea-worthy packing
Port
Shanghai
Lead Time :
within three working days

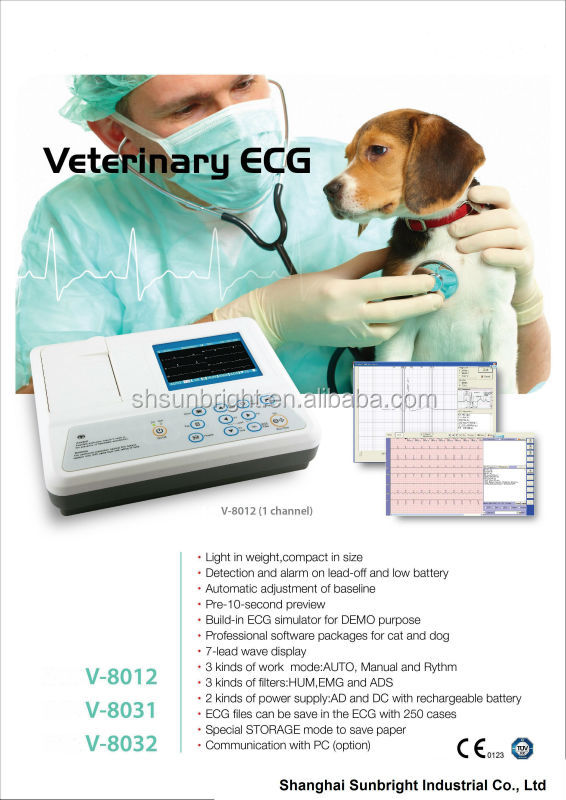

for Vet Digital one channel ECG machine

Product  Introduction



Product Photos

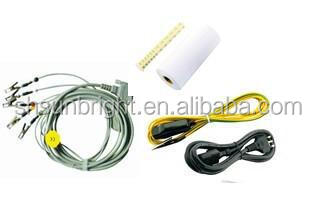

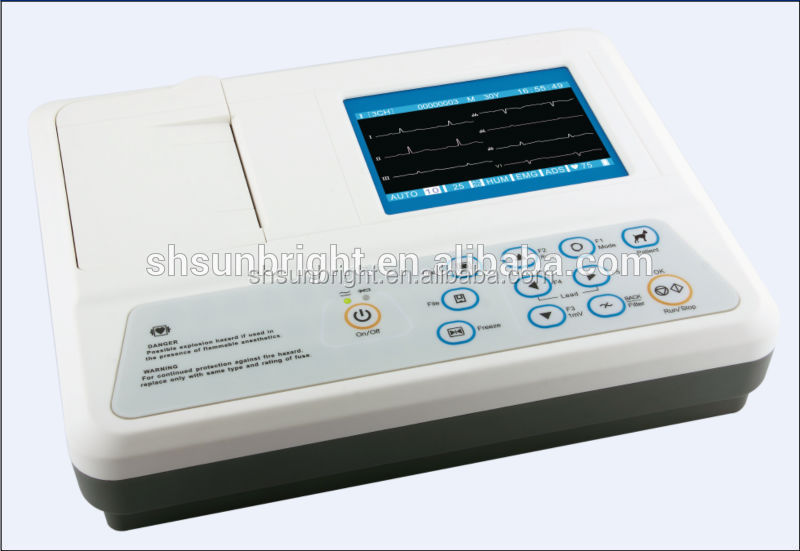

                Main Unit                                                                         Accessories

Features

7 leads synchronously acquisition and record, excellent auto-interpretation function

High accuracy digital filter, auto-baseline adjustment

Working modes: Manual / Auto / R-R Rhythm

Recording mode: 1ch, 1ch+

320×240 graphic, 3.5 inch color LCD to display detailed ECG information

250 cases storage and replay ( SD card storage is optional )

Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.

50mm*20m high resolution thermal printing

Rs232 and USB interface ( USB disk storage, laser printer printing , Veterinary PC ECG software are optional )



10 300mm*230mm*75mm, 2.8kgs

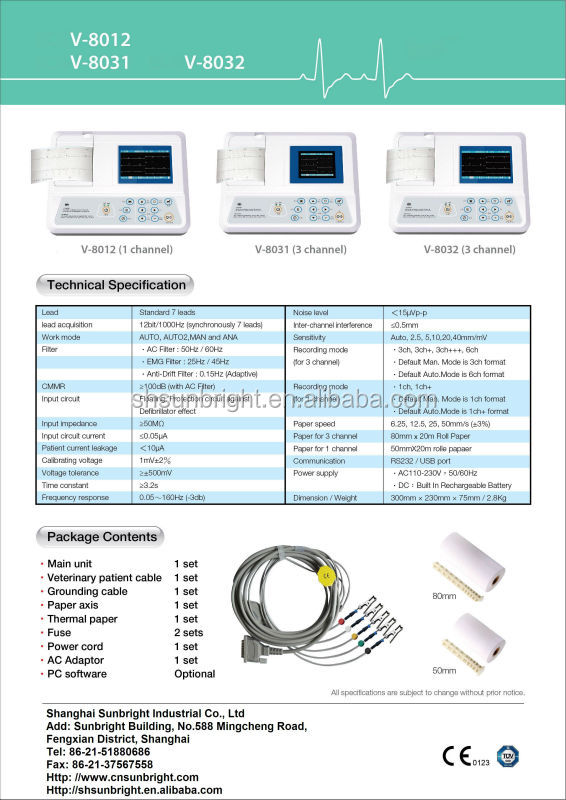

Technical Specification

Lead

Standard 7 leads

Time constant

≥3.2s

lead acquisition

12bit/1000Hz (synchronously 7 leads)

Frequency response

0.05~160Hz(-3db)

Work mode

Man / Auto/R-R Rhythm

Noise level

<15μVp-p

Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

Inter-channel Interference

≤0.5mm

CMMR

≥120dB (with AC FILTER)

Sensitivity

2.5,5,10,20, 40, Auto  (mm/mV)

Input circuit

Floating; Protection circuit against Defibrillator effect

Recording mode

1ch, 1ch+

Default Man. Mode is  1ch  format

Default Auto. Mode is  1ch+  format

Input Impedance

≥50MΩ

Paper speed

6.25,12.5,25,50mm/s(±3%)

Input circuit current

≤0.05μA

Paper

50mm *20m Roll paper

Patient current leakage

<10μA

Communica-

tion

RS232/ USB port

Calibrating voltage

1mV±2%

Power Supply

AC 75-265V(±10%),50/60Hz(±1Hz),40VA

DC Built-in rechargeable battery,12V(1500mAh)

Voltage tolerance

≥±500mV

Dimension/

Weight

300mm×230mm×75mm / 2.8Kg



Package

1 unit / small carton,  40cm*34cm*22cm, net weight 2.8kgs, gross weight 4.5kgs

4 units / big carton,   70cm*41cm*46cm, net weight 12kgs,  gross weight 20kgs
