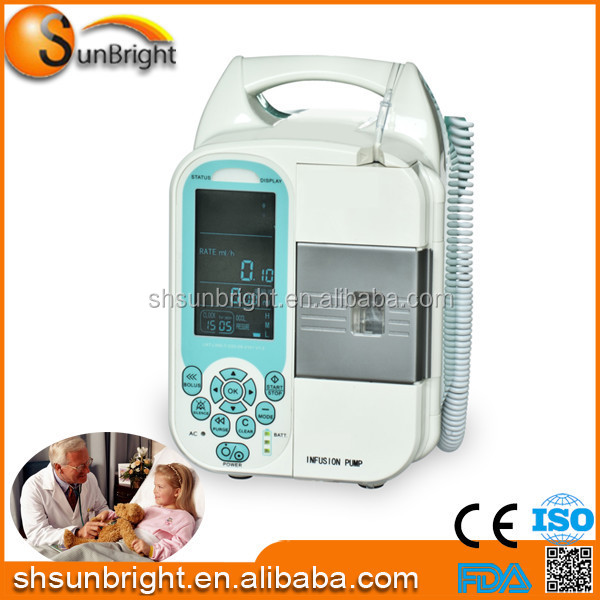

High Quality Medical Equipment Infusion Pump
Advantages & sales points:
1. Available all brand of the standards IV sets, the pump has 120 levels adjustment
to keep high precision.
2. Power Switching Function:When AC power is disconnected, automatically
switch into battery power supply and give indication.
When the AC power is connected, automatically switch into AC power working.
3. Piezometry Method: Adopts advanced lateral pressure pipe technology, avoid the door
be out of shape effect occlusion pressure
4. Fluid Control Way: Adopts original flow suppresser lock technology,
convenient to install IV pipe in single hand.
5. Data Memory Function: Able to save the latest setting alarm volume,
flow precision fine level, occlusion pressure levels
and clock, for use next time.
Be able to save 5 years.
17. KVO (Keep Vein Open):After finish setting infusion amount, for prevent to form thrombus,
keep to infusion at the lowest rate 0.3ml/h or 0.1ml/h.
22. Adopts imported main spare parts: Japan Toshiba driver module, USA ATMEL and
Japan NEC chip, good anti-interference function.
23. The chip in syringe pump is be processed by ourselves
on SMT machine production line instead of by manual work,
as weld every point by hand.
AC 90V~AC 242V, 50HZ
DC 12V 1800mAh
Battery Continuous Use Time
Infusion Flow Selection
0.1ml/h~1200ml/h(6~150d/min), original value is 0.1ml/h (1d/min)
0.1ml~9999.9ml,original value is 0.1ml
Flow Rate Precision
volume mode ±5%,drop mode ±2d
Occlusion pressure level
Low:60kPa±20kPa (450mmHg±150 mmHg)
Relative Humidity ≤90%RH (Under without condensation status)
Atmospheric Pressure 860hPa~1060hPa
Relative Humidity ≤95%RH (Under without condensation status)
Electric Shock Protection
Class I, Type BF
occlusion, finish, low battery, standby (no
operation), air in line, door open, AC power
After finishing predetermined infusion volume, to prevent the
formation of thrombus, will continue infusion with agreed
minimum rate (3ml/h or 1ml/h).
Power Supply Switching Function
When the AC power supply is off, it can be automatically switched to built-in battery power supply and prompt at the same time. When AC
is switched on,
automatically converted back to AC supply.
Repeat Alarm Function
After the operator presses the “SILENCE” key, if the reason
causing the alarm has been untreated for 2 minutes, the
alarm will sound again to alert the operator to solve the
Data Memory Function
Save the last setting of sound volume level, flow precision fine
tuning level and occlusion pressure level, as well as the clock,
to prepare for the next use. The longest memory time is 5
High Flow Safety Confirm
In order to ensure infusion safety, when the flow rate is
greater than or equal to 300ml/h (or equivalent), the device
will prompt user to confirm again, and will not carry out
infusion before confirmation.
For convenience, when installing or removing IV set at night
or in darkness, light will automatically turn on after the door
is open. The light is an LED light source (white).
Battery Protection Alarm
In order to protect the battery and ensure infusion safety,
there are different levels
of acousto-optic prompts when the electric quantity of the battery is
changing from close
to depletion to almost depleted.
A continuously large number of bubbles going into the human
body can form the air embolus, and it is life-threatening. So
when bubble length is 3mm (10.6ul) or accumulated bubble
length is 3mm (10.6ul) is detected, will trigger acoustic-optic
Drip Sensor Slope
In d/min mode, when there are problems such as tube slope,
liquid overflow and misplaced/moved sensor, there will be an
