1 Channel EKG (SUN-8012) with ECG paper

FOB Reference Price:Get Latest Price
US $199-599 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pathological Analysis Equipments
Brand Name:
Sunbright
Place of Origin:
Shanghai, China (Mainland)
Model Number:
SUN-8012
Instrument classification:
Class II
display:
3.5 inch color LCD display
Lead:
Standard 12 leads
patients save/reply:
100 CASES
Communication with PC:
yes
work mode:
AUTO, Manual and Rythm
Measurement and Interpretation:
yes
Battery:
Built-in rechargeable Ni-MH battery
Recording Paper:
50mm *20m
Port:
RS232/USB
ECG waveform:
yes
Supply Ability
Supply Ability:
20000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Air-worthy packing, Sea-worthy packing
Port
Shanghai

1 Channel EKG (SUN-8012) with ECG paper









Features:

Single channel ECG machine with measurement and interpretation

Work modes: Manual/Auto/Arrhythmia analysis modes

Built in rechargeable Ni-Mh battery

Adaptor 110-230V, 50/60Hz AC power supply

Built in USB/RS232 interface (ECGNET software Optional)

Lead-off indictor





 Technical Specification:


Lead:standard 12 leads

Calibrating voltage: 1mV±2%

Voltage tolerance: ≥±500mV

Time constant: ≥3.2s

Frequency response: 0.05~160Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5, 10, 20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)

Input dynamic range:±10Vpp

Filter:



AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥120dB (with AC filter)

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Patient current leakage:<10μA

Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

Work modes: MAN,AUTO,ANALYSIS modes

Input circuit: floating; protection circuit against defibrillator effect

Display: 3.5 inch colour LCD

USB/RS232 is Optional

ECG waveform,100 patient save/replay

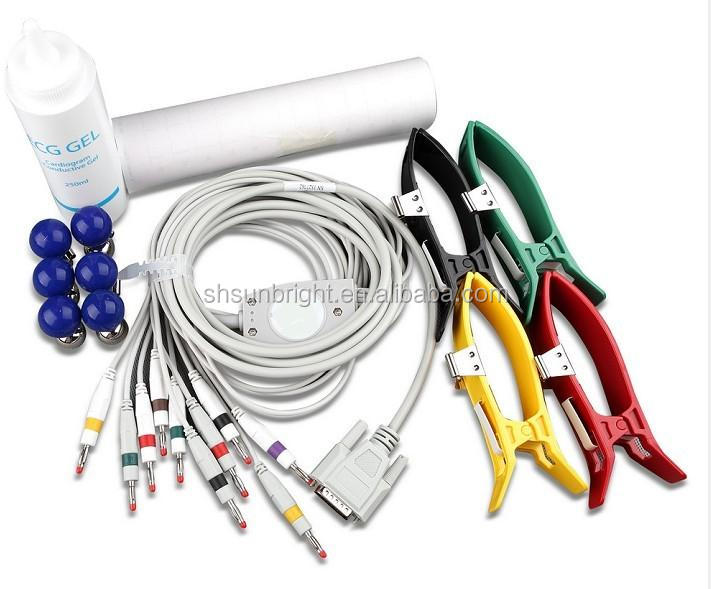

  Standard Configuration:



Patient cable                 1 set

Limb electrode               4 sets

Chest electrodes             6 sets

Grounding cable             1 set

Paper axis                   1 set

Thermal paper               1 set

Fuse                        2 sets

3-cord power cord            1 set

AC Adaptor                 1 set















ECG accessories
