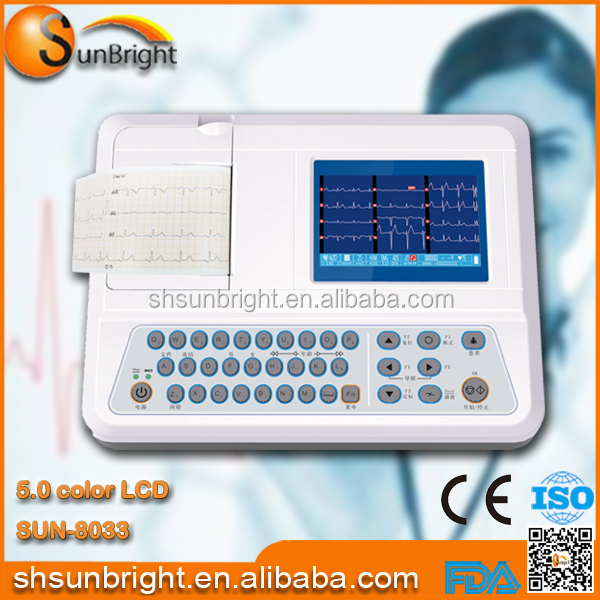

SUN-8033 12 lead ecg machines with CE made in China ecg machine 3 channel

FOB Reference Price:Get Latest Price
US $300-500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pathological Analysis Equipments
Brand Name:
Sunbright
Place of Origin:
Shanghai, China (Mainland)
Model Number:
SUN-8033
Compact and lightweight design:
yes
5.0 color LCD display:
yes
12-lead simultaneous acquisition:
yes
Working Mode:
Manual/Auto/Physical examination/Storage
Battery:
Li-ion battery
ECGNET software:
optional
patient save:
250
Paper speed:
6.25, 12.5, 25, 50mm/s(±3%)
Recording Paper:
80mm *20m
port:
RS232/USB
Supply Ability
Supply Ability:
20000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Air-worthy packing, Sea-worthy packing
Port
Shanghai
Lead Time :
within three working days



Product Description





SUN-8033 12 lead ecg machines with CE made in China ecg machine 3 channel







Features:

3 channel ECG machine with interpretation
Manual/Auto/Arrhythmia Analysis Modes
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Built in USB/RS232 interface(ECGNET software Optional)



Technical Specification:

Lead:standard 12 leads

Calibrating voltage: 1mV±2%

Voltage tolerance: ≥±500mV

Time constant: ≥3.2s

Frequency response: 0.05~160Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5, 10, 20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)

Input dynamic range:±10Vpp

Filter:

  AC Filter : 50Hz / 60Hz

  EMG Filter : 25Hz / 45Hz

  Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥120dB (with AC filter)

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Patient current leakage: <10μA

Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

Work modes: MAN,AUTO,ANALYSIS modes

input circuit: floating; protection circuit against defibrillator effect

Display: 5 inch colour LCD

ECG waveform,250 patient save/replay

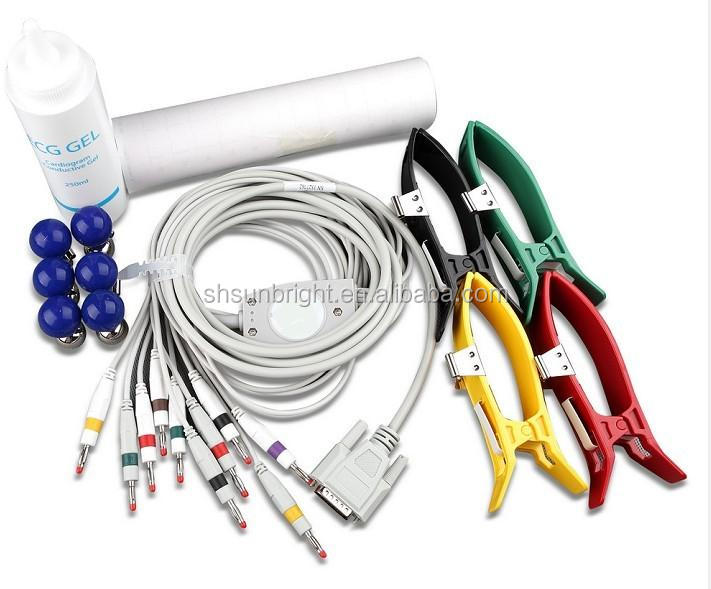

 Standard Configuration:


Patient cable                 1 set

Limb electrode               4 sets

Chest electrodes             6 sets

Grounding cable             1 set

Paper axis                   1 set

Thermal paper               1 set

Fuse                        2 sets

3-cord power cord            1 set

AC Adaptor                 1 set
