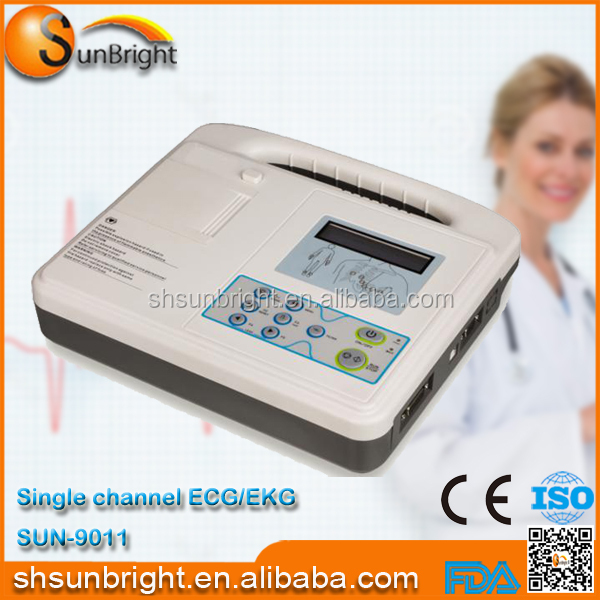

High Quality 1 channel digital CE Approved Diagnosis ECG with ECG Paper

FOB Reference Price:Get Latest Price
US $50-280 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pathological Analysis Equipments
Brand Name:
Sunbright
Place of Origin:
Shanghai, China (Mainland)
Model Number:
SUN-9011
Dimnesion:
285*265*72mm
Weight:
2.8kgs
Roll paper:
50mm*20m
Storage:
16 patients
Display:
20*2 character
Working modes:
Manual/Auto/Arrhymia Analysis
Battery:
Ni-MH
Lead:
standard 12 leads
Supply Ability
Supply Ability:
20000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Air-worthy packing, Sea-worthy packing
Port
Shanghai
Lead Time :
within three working days



Product Description



High Quality 1 channel digital CE Approved Diagnosis ECG with ECG Paper




Features:

  1. Compact and light weight design
  2. 20*2 character
  3. 12-lead simultaneous acquisition'
  4. Antomatic measurement and interpretation
  5. Digital isolation technology is adopted to minimizing time & tempreture drift of components
  6. Digital filtering, resisting baseline drift, AC and EMG interference
  7. Automatic baseline adjustment
  8. Optional rhythm lead printing
  9. Anto/ Manual/ Arrthymia Analysis -Work mode
  10. Built-in high resolution thermal array printer
  11. Built-in rechargeable battery, AC/DC power supply



Technical Specification:

  • Leads: standard 12 leads
  • Lead acquisition:12bit/1000Hz(synchronously 12 leads )
  • Work mode: MAN,AUTO,ANALYSIS modes
  • Filter

AC filter: 50Hz / 60Hz

EMG Filter: 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

  • CMMR: ≥120dB (with AC filter)
  • Input circuit: floating; protection circuit against defibrillator effect
  • Input Impedance: ≥50MΩ
  • Input circuit current: ≤0.05μA
  • Input dynamic range:±10Vpp
  • Patient current leakage: <10μA
  • Calibrating voltage: 1mV±2%
  • Voltage tolerance: ≥±500mV
  • Time constant: ≥3.2s
  • Frequency response: 0.05~160Hz(-3db)
  • Noise level: <15μVp-p
  • Sensitivity valve: ≤20μV
  • Sensitivity: 5,10,20mm/mV
  • Inter-channel Interference: ≤0.5mm
  • Paper speed: 25,50mm/s(±3%)
  • Display: 20x2 character LCD, USB/RS232 is optional
  • Dimension and weight: 285x265x72(mm), about 2.5Kg

Standard Configuration:





Patient cable1 set
Limb electrode4 sets
Chest elelctrodes6 sets
Gounding cable1 set
Paper axis1 set
Thermal paper1 set
Fuse2 sets
3-cord power cord1 set
AC Adaptor1 set



ECG accessories.jpg
