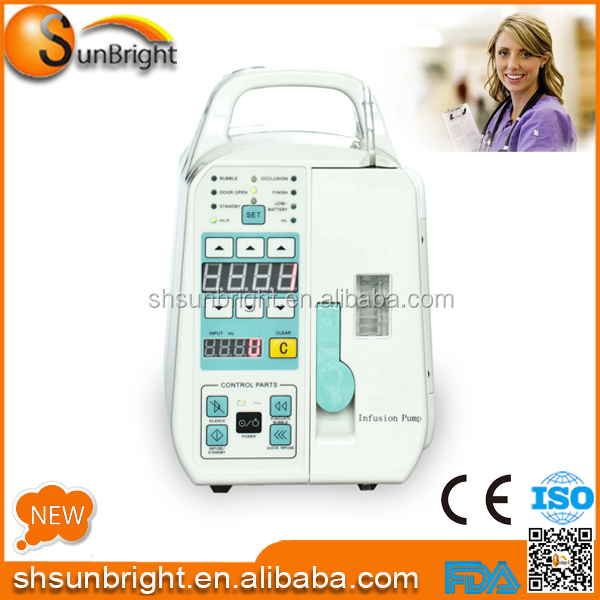

Low cost Infusion Pump with CE&FSC Model SUN-902
Advantages& sales points:
7. Adopts imported main spare parts: Japan Toshiba driver module, USA ATMEL and Japan NEC chip,
good anti-interference function.
9. Able to set flow rate by single digit, tens digit and hundreds digit separately,
not need to increase from single digit.
22. The chip in syringe pump is be processed by ourselves on SMT machine production
line instead of by manual work, as weld every point by hand.
≤90%RH (Under without condensation status)
AC 90V~AC 242V, 50HZ
DC 12V 1800mAh rechargeable Ni-MH battery,
the battery can be used continuously
for 2 hours after full charged (24hours)
under 25ml/h flow rate.
Flow rate options
1ml/h~1200ml/h, in 1ml/h increment
Infusion total amount setting
1ml~9999ml, in 1ml increment
Occlusion pressure level
High: 825mmHg ± 150 mmHg (110kPa±20kPa)
Middle:600mmHg ± 225mmHg (80kPa±30kPa)
Low: 450mmHg ± 150 mmHg (60kPa±20kPa)
Flow rate error
occlusion, finish, low battery, standby (no operation),
air in line, door open,
motor troubles, AC power disconnected, starting up by battery
self-test, infusion amount setting, flow rate and
infused volume display, power indication, safe flow
rate limit, data preserves, KVO (Keep Vein Open)
