Portable Ultrasonic Diagnostic Devices, 15 inch color 3d ultrasound machines/china ultrasound machine price
Place of Origin:
Shanghai, China (Mainland)
continuesly work more than 3 hours
2 usb ports, connectivity of usb flash and laser printer
general, OB/GYN, vascular, cardiology, urinary, small organs, etc.

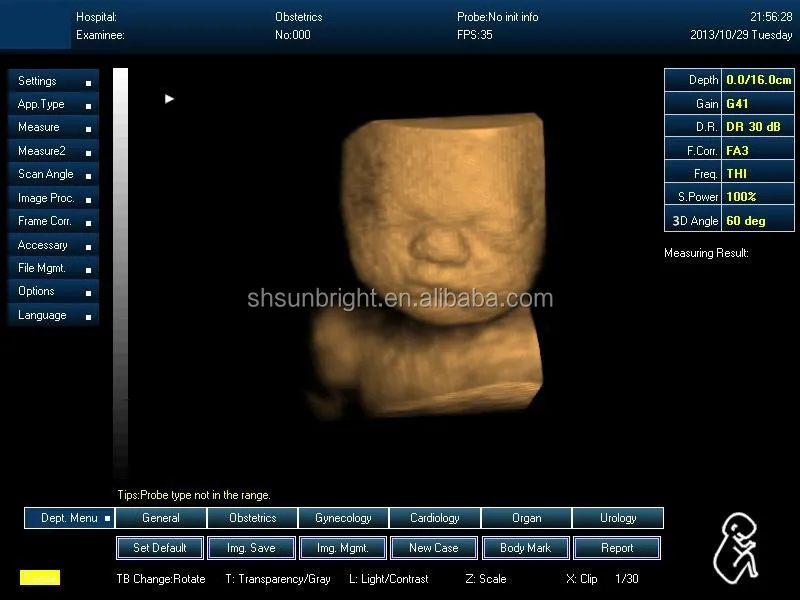

2D, free-hand 3D
AVI, JPG, BMP, PNG, TIF, DICOM
8-segment TGC, precise adjustment of near/far gain
512 Frame (Auto/Manual)
Any printers is OK
English, Chinese, Spanish, Portuguese, French
20000 Unit/Units per Year 15 inch color 3d ultrasound machine/china ultrasound machine
Packaging & Delivery

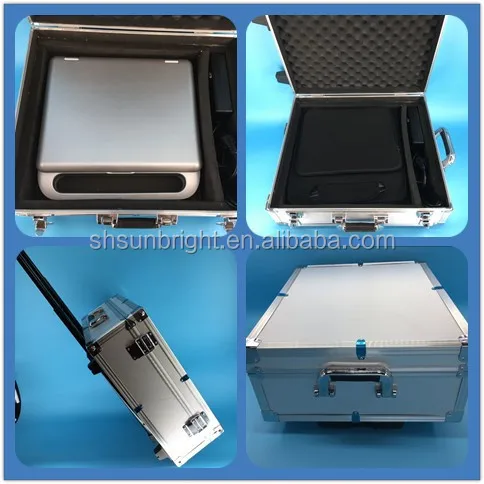

Sea-worthy packing/Air-worthy packing for 15 inches color 3d ultrasound scanner/china ultrasound machine price
FDA 15 inch color 3d ultrasound scanner/china ultrasound machines price
Sunbright is proud to announce its newly released laptop-sized ultrasound systems, varying from 2D, 3D, black & white, color Doppler, etc. Local dealers are warmly welcome to check with Sunbright for distributorship ASAP.

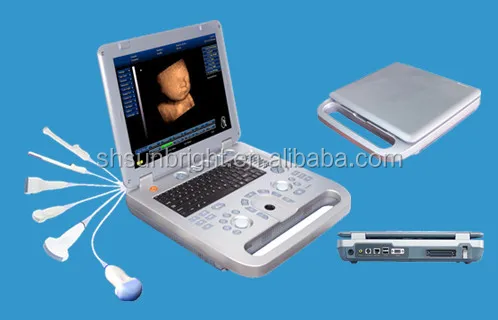

Compact as a typical laptop computer, Sun-800D 3D ultrasound system incorporates with the latest biomedical engineering and ultrasonic imaging techniques, delivering superb image quality, outstanding clinical performance and versatility, user-friendly tutorial workflow, easy affordability, and beyond. It's surely the right hand of ultrasound professionals anywhere, anytime.

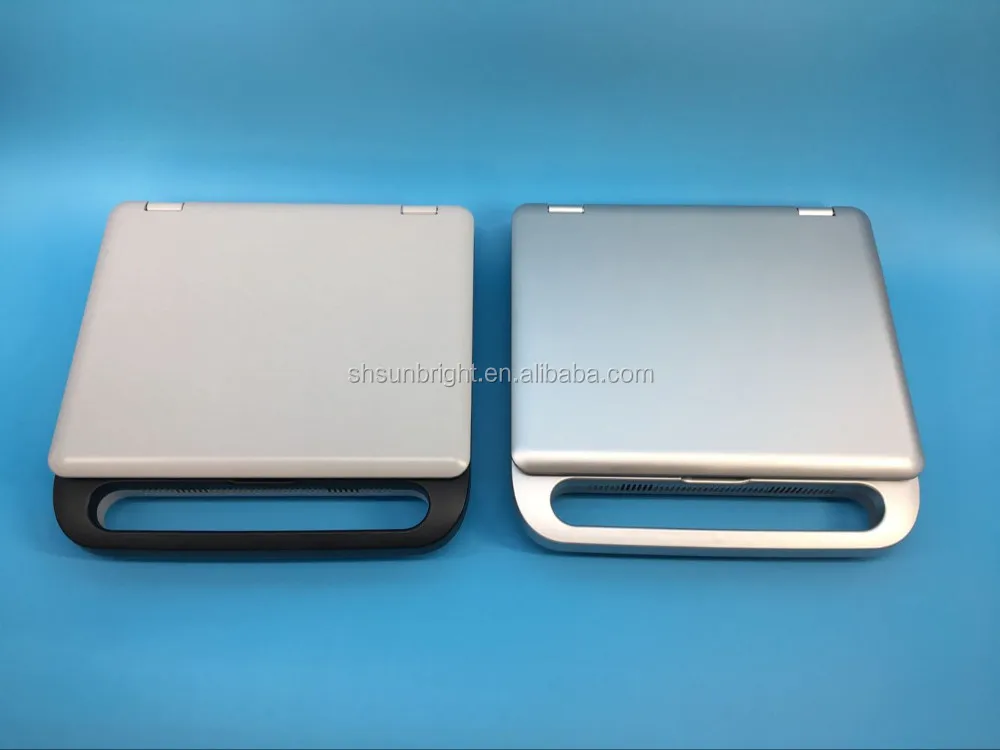

Two colors for optional

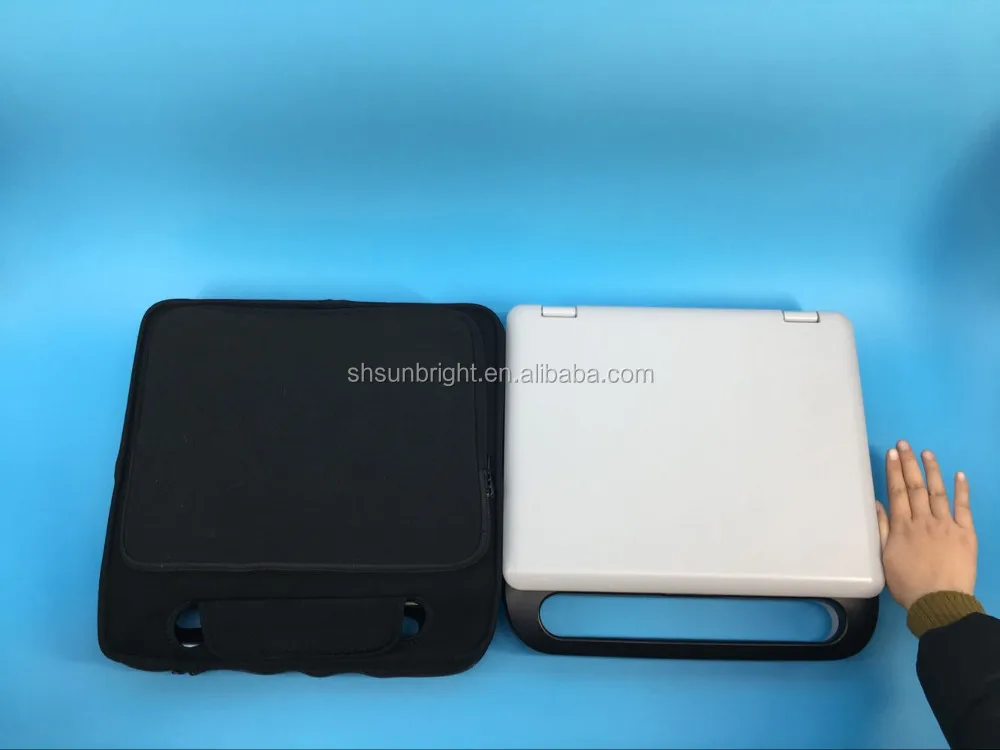

Handheld carrying bag

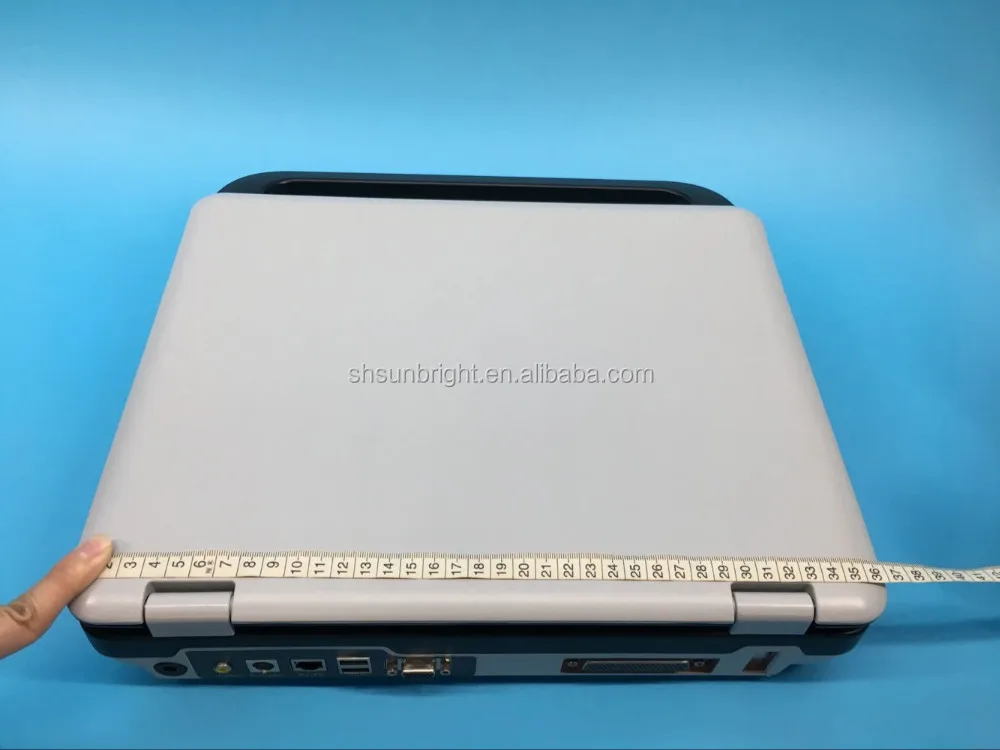

35cm for length

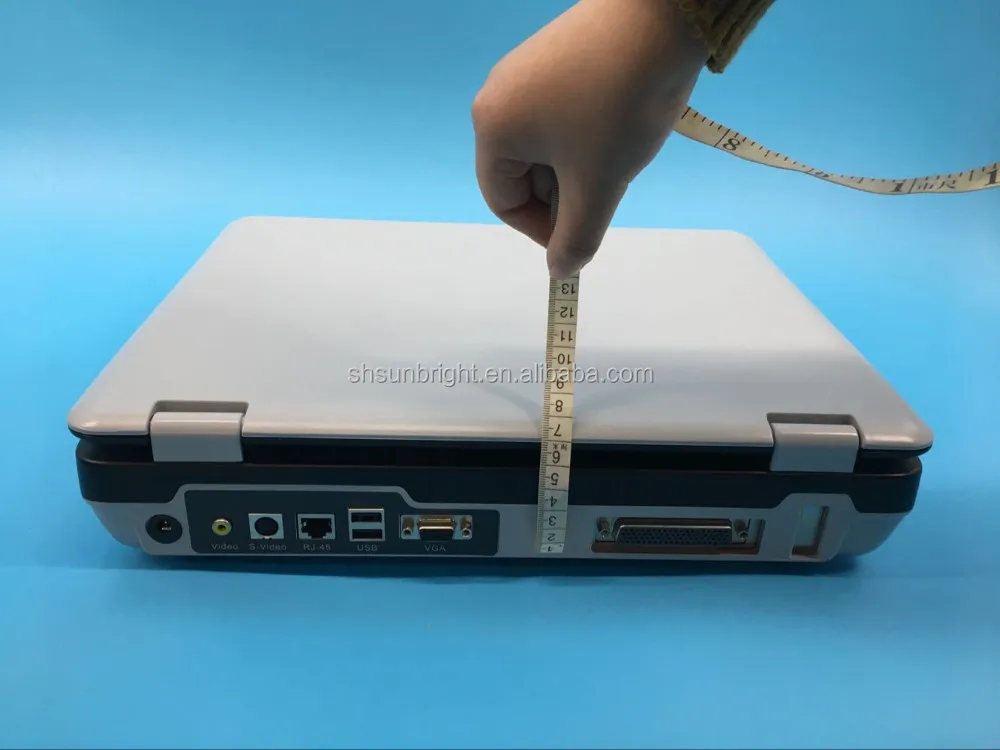

6cm for thickness
Weighing less than 5 kgs, comfortably pick and go. Built-in battery, working time more than 3 hours, extending point of care to sites where power sources are unavailable. Not only a professional ultrasound system, could also be a laptop computer upon request. 15 inch LED display, as large as 175 degree viewing angle. 8-segment TGC, precise adjustment of near/far gain. 2 usb ports, connectivity of usb flash and laser printer Discom 3.0 port, compatibility with archives, PACS or serves Projector port, a must for lecturing or training Probe variety: convex, micro-convex, endo-cavity/rectal, linear, volume Specialty: general, OB/GYN, vascular, cardiology, urinary, small organs, etc. Display mode; B, 2B, 4B, B/M, M Imaging mode: 2D, free-hand 3D Image/video format: AVI, JPG, BMP, PNG, TIF, DICOM
3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz
7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz
6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to 8.0MHz
3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHz
DBF, RDA, DRA, DRF
Dynamic frequency scanning from 2.0 to 12.0Mhz, 4 multi-frequency scanning
≥100dB, 4 steps of switching functions
Image process technologies
controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.
stepless magnification, dynamic real-time PIP local zoom functions
512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode.
Image management system
the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.
Measurement and calculation
measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.
puncture guide, distogram, sectional drawing
Menu manage interface
real time online support and navigation clew system, image fore-set and one-key optimization functions.
Auto-measure software of OB., Gyn., small organs, cardiac, urology and others
OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine. Small organs: thyroid gland, hip joint. Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV. Urology: remained urine sample, prostate,PSAD. Patient cases database systems. All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.
Relative extended ports
VGA, S-Video, TV video port USB2.0 port, 2G saving card RJ-45 network port Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others. Compatible of jet printer, laser printer, video printer and video recorder
Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
