Small size portable SUN-V1 animals pregnancy fetaltest cheap vet ultrasound

FOB Reference Price:Get Latest Price
US $100-800 / Units | 1 Unit/Units Small size portable SUN-V1 animals pregnancy fetaltest cheap vet (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Portable Ultrasonic Diagnostic Devices, portable SUN-V1 animals pregnancy fetaltest cheap vet ultrasound
Brand Name:
Sunbright
Model Number:
SUN-V1
Place of Origin:
Shanghai, China (Mainland)
battery:
li-ion
battery work time:
more than 3 hours
Image modes:
B, B+B, B+M, M
Storages:
128 frams
Gray shades:
256 levels
measurement:
Distance, Circumference, area, volume, heart rate. GA.FW.EDD.
Probe:
3.5 Mhz mechnical probe
Supply Ability
Supply Ability:
20000 Unit/Units per Year Small size portable SUN-V1 animals pregnancy fetaltest cheap vet
Packaging & Delivery
Packaging Details
Sea-worthy packing/Air-worthy packing for Small size portable SUN-V1 animals pregnancy fetaltest cheap vet ultrasound
Port
Shanghai
Lead Time :
within 3 days after full payment
Product Description

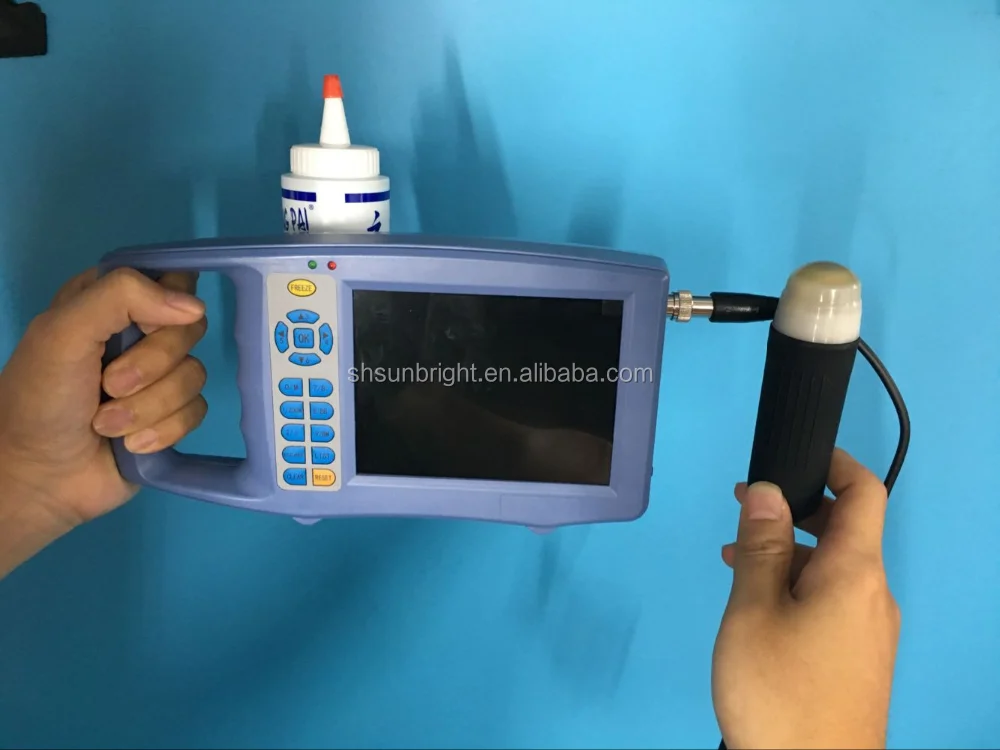

Small size portable SUN-V1 animals pregnancy fetaltest cheap vet ultrasound


Main features:

1.5.6 inch TFT LCD;
2.Light weight of 500g;
3.Built-in battery can drive the main unit to work for more than 3 hours;
4. Measurement:
Distance, Circumference, area, volume, heart rate. GA.FW.EDD.

Application



Suitable for diagnosis on swine, equines, bovines, sheep, cats and dogs and other animals.

General Specifications

The device adopts technologies such as microcomputer control and digital scanning converter (DSC), large dynamic broadband low-noise preamplifier, logarithmic compression, dynamic filtration, edge enhancement etc to ensure legible, stable and high resolution images.

Four display modes: B, B+B, B+M, M; Image gray scale: 256 levels.

It can realize image real time display, frozen, zoom; remark case history number, age, sex; measuring distance, circumference, area, heart rate and gestation age;

Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, the specialized brownout mode enabling more lasting battery operation.

5.6 inches TFT-LCD display, programmable device (FPGA) and surface mounted technology (SMT) make this device compact and light in weight.

PAL-D video output with mouse mouthpiece.
Jet molding enclosure with hand-held structure makes it convenient for outside diagnoses.

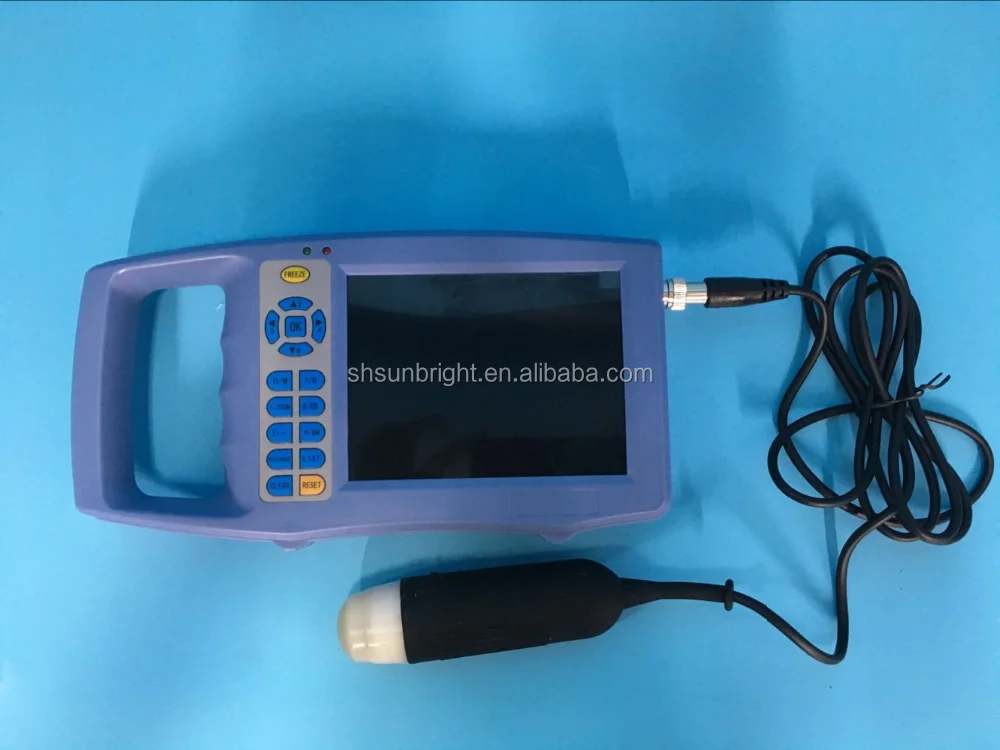

The device consists of mainframe, probe and adapter. 3.5MHz waterproof mechanical sector scanning probe is the standard configuration.

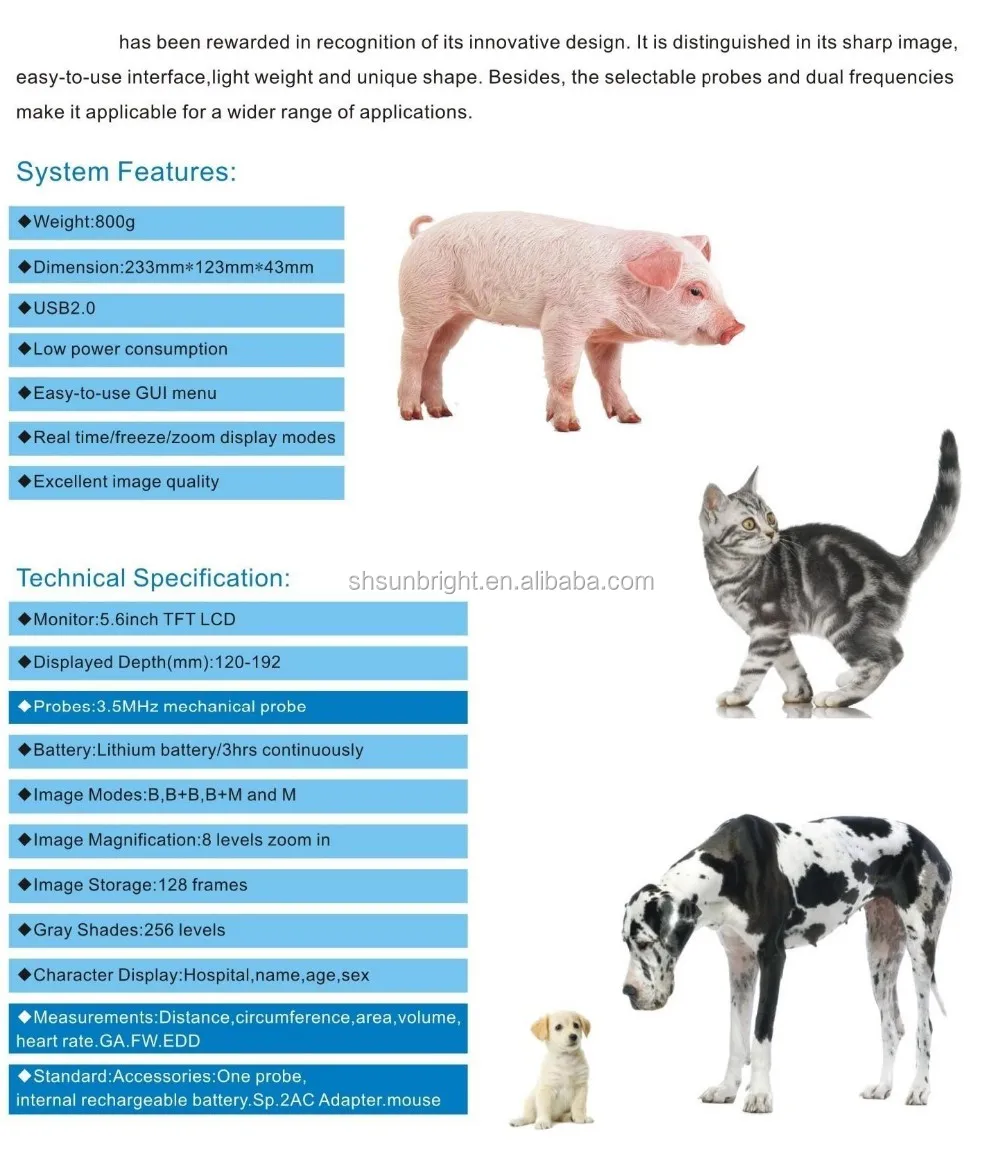

Technical Specification


Probe
3.5 MHz Mechanical sector
Displayed Depth (mm)
60—190
Maximal detect depth (mm)
≥140
Resolution(mm)
Lateral
≤4( depth ≤80) ≤5( 8≤depth ≤130)
Axial
≤2( depth ≤80)
Blind area (mm)
≤8
Geometric
position Precision (%)
Horizontal
≤20
Vertical
≤10
Monitor size(inch)
5.6 TFT-LCD
Display modes
B, B+B, B+M, M
Gray scales
256 levels
Image multiplying factor
*1.0, *1.2, *1.5, *2.0
Image storage
128- frame
Measuring functions
Distance, circumference, area, heart rate, gestation
Battery capacity
2200mAh
Mainframe power
13W at non-charging operation / 25W at charging operation
Adapter power consumption
45W
Character display
case history number, age
Faked color display
Gray, red, yellow, blue

SUN-V1 Standard Configuration:

Item
Model
Qty
Remark
1
Main unit of SUN-V1
1
2
3.5 Mhz mechnical probe
1
3
Battery Adaptor
1
4
Power Line
1
Detailed Images

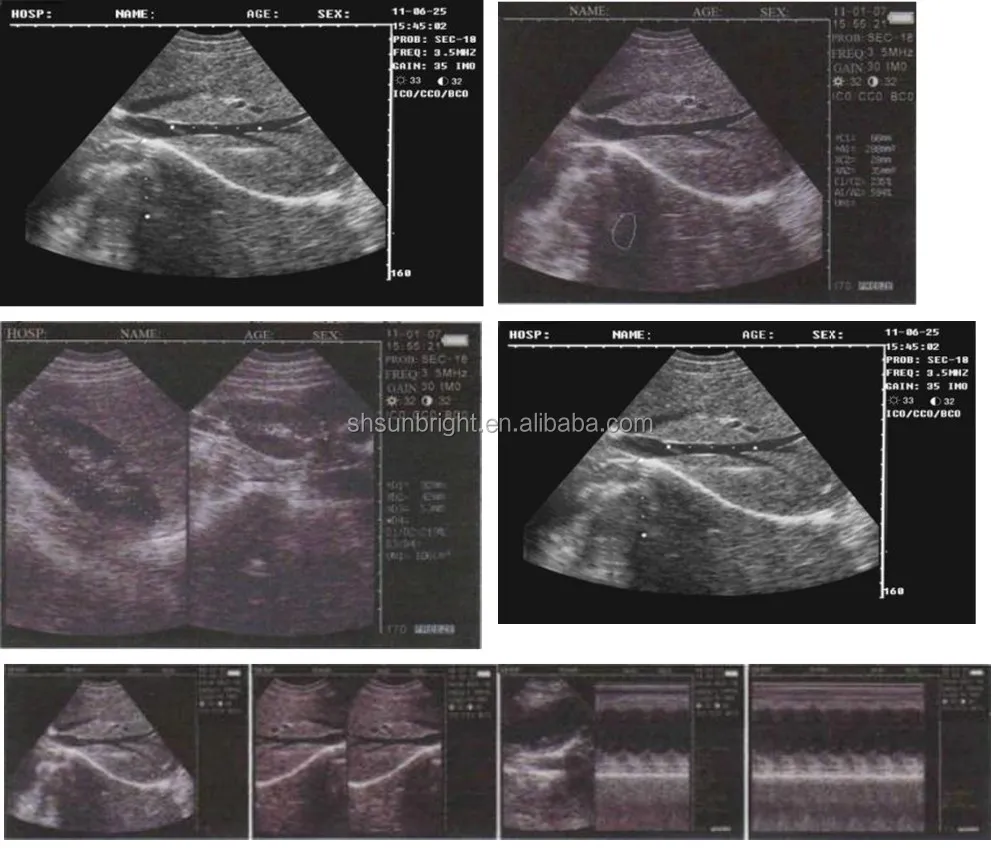

Scanning Images:

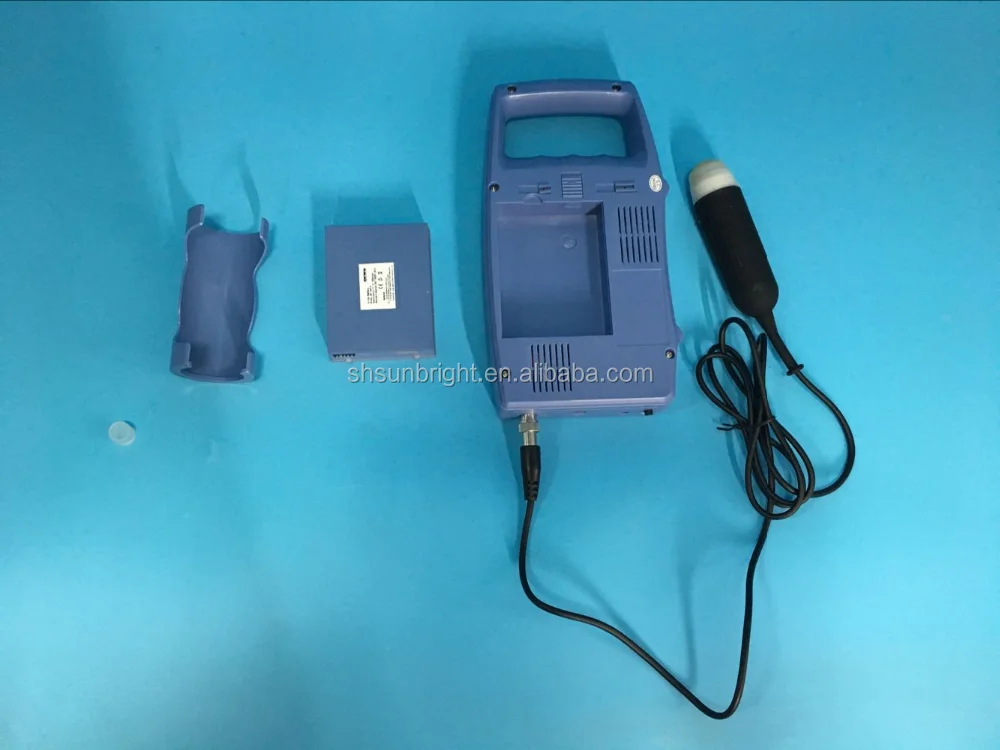

More details:

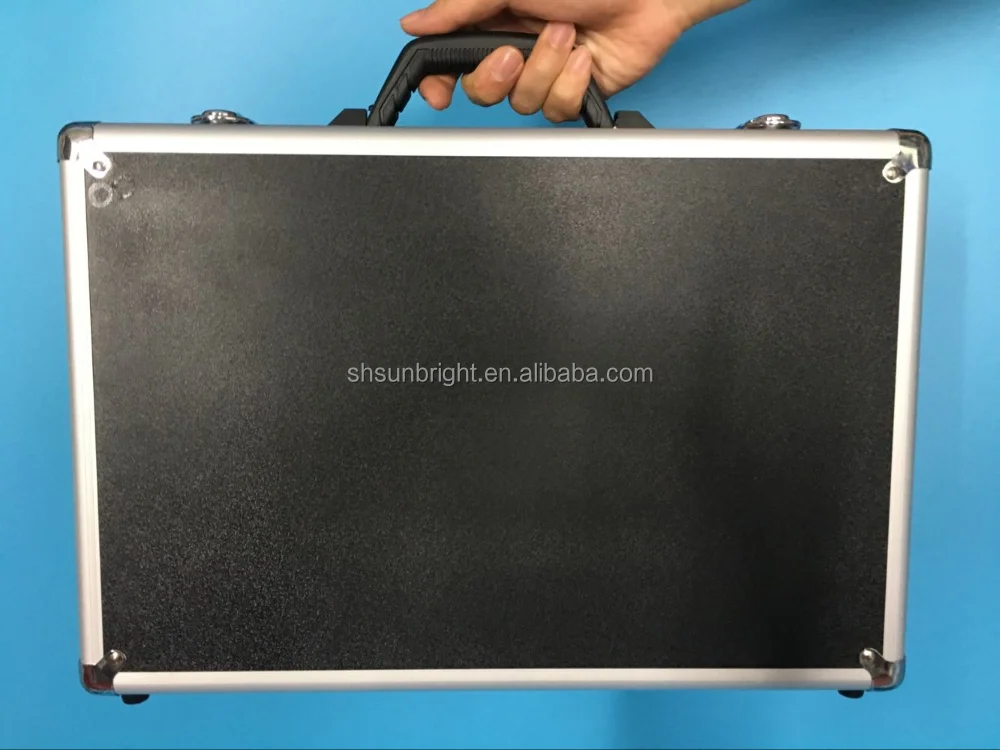

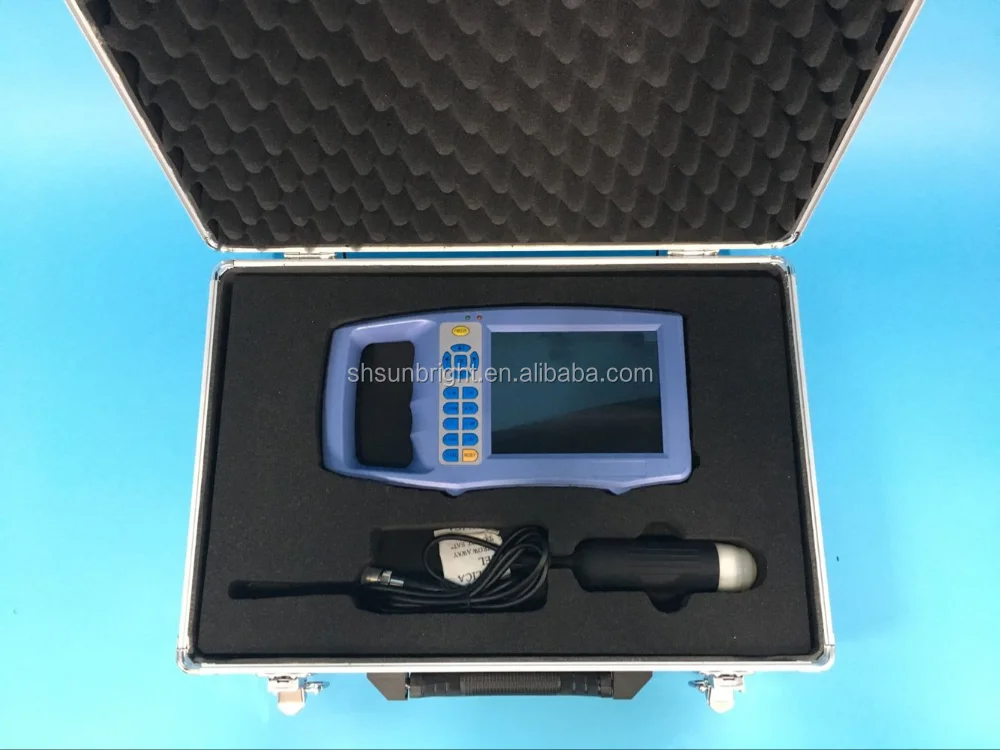

Packing& Aluminum suitcase:
