China manufacturer factory 4D CW color doppler laptop SUN-906E

FOB Reference Price:Get Latest Price
US $100-6,500 / Units | 1 Unit/Units factory 4D CW color doppler laptop SUN-906E (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Portable Ultrasonic Diagnostic Devices, doppler ultrasound echo ultrasound doppler machine price
Brand Name:
Sunbright
Model Number:
SUN-906E
Place of Origin:
Shanghai, China (Mainland)
battery:
Built in Li-ion battery
battery work time:
more than 3 hours
Cineloop:
Cineloop
Max display depth:
≥300mm
USB ports:
3
Display mode:
B,M,B/B,4B,B/M,B/C,B/D,CFM,PWD,CW
Probe:
convex probe, linear probe, transvaginal probe, micro-convex probe,
application:
general, OB/GYN, cardiology, urinary, small organs, etc.
Weight:
6.3 KG
Supply Ability
Supply Ability:
20000 Unit/Units per Year factory 4D CW color doppler laptop SUN-906E
Packaging & Delivery
Packaging Details
Sea-worthy packing/Air-worthy packing for China manufacturer factory 4D CW color doppler laptop SUN-906E
Port
Shanghai
Lead Time :
within 3 days after full payment
Product Description

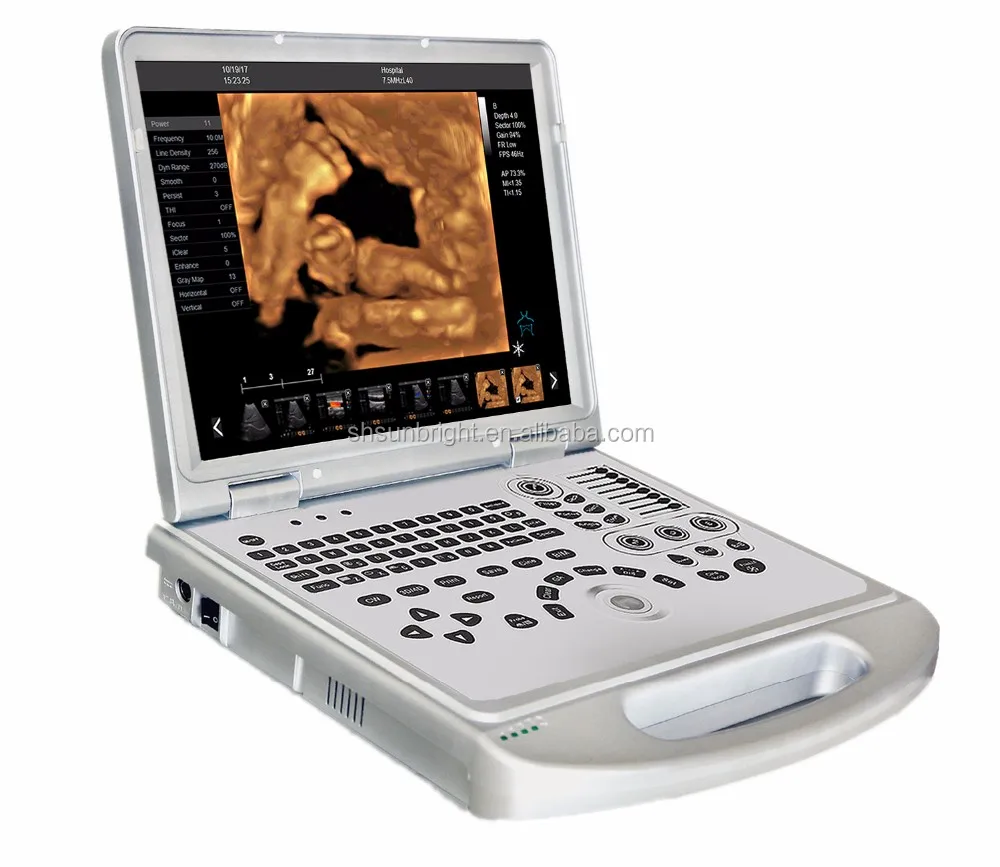

China manufacturer factory 4D CW color doppler laptop SUN-906E


Main features:

1.15'' LED monitor with high resolution, USB ports;

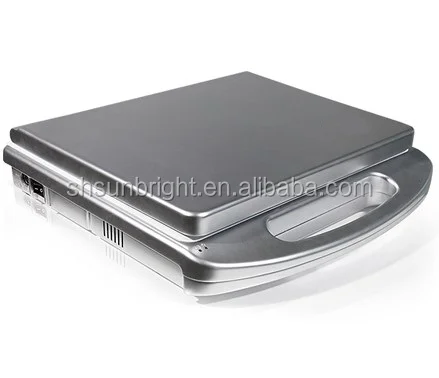

2.Light weight of 6.3kg, and s
mart, compact and clamshell design;
3.Built-in battery can drive the main unit to work for more than 3 hours;
4. Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery, Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc
5. VGA Outpout,DICOM port,USB port

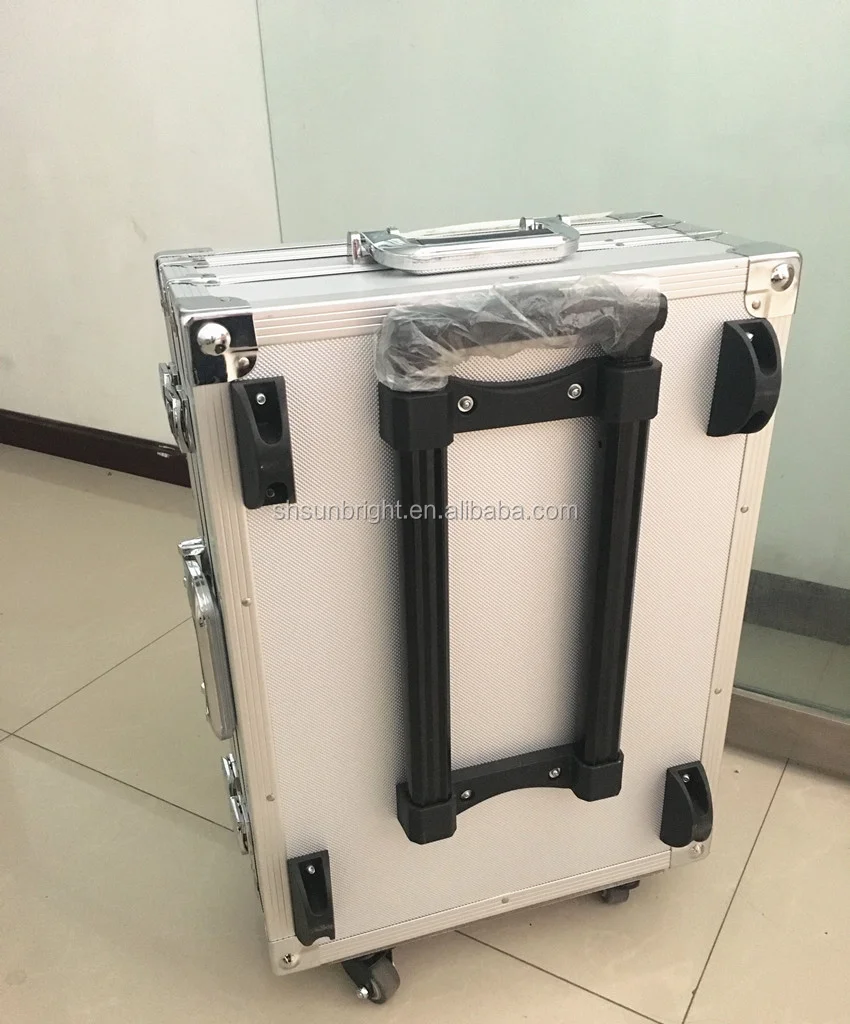

6.Aluminum suitcase

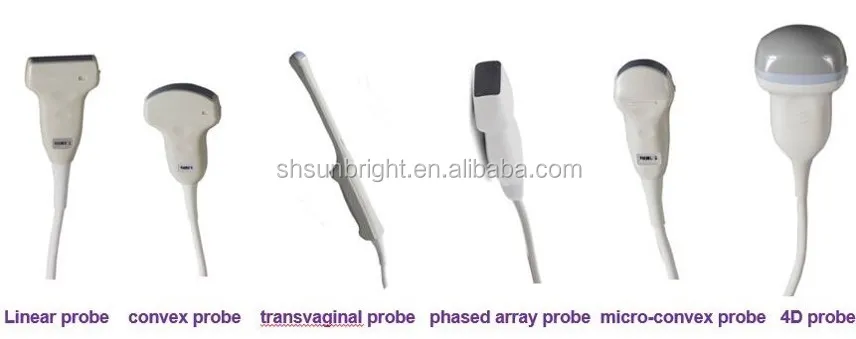

Optional probes:


-3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

-7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)

-3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)

-6.5Mhz transvaginal probe (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)

-3.5Mhz phased array probe (2.0/ 3.0/ 3.5/ 4.0/ 5.0Mhz)

-4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5,6.5Mhz)

Other Specifications:


Function

-Auto Image Optimization

-Tissue Harmonic imaging

-iClear (Speckle Noise Reduction)

-iBeam (Spatial Compound Image)

-iZoom

-PIHI (Pulse-Inverse Harmonics Imaging)

-SA (Synthetic Aperture ultrasonic Imaging)

-Continuous Wave Doppler

-Panoramic Image (Option)

-Trapezoid Image (Option)



Display mode

-B, B|B,4B, B|M,M,B|D,PW,B|PW, CF

-Duplex/Triplex mode

-CW

-4D mode (option)



Zoom

-Real time zooming

- 10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0

-Selectable zooming position




Focus

-Continuous dynamic focus

-1~16 selectable transmit focus

-Acoustic lens focus

-1, 2, 3, 4 focus




Memory

Cine‐memory

-B‐mode

-M‐mode

-SSD (Solid State Disk) 64G


Physical Features

Connectivity

-HDMI out port

-AUDIO out port

-3 USB port

-2 LAN port



Dimension

-Packing dimension:

 46cm*32.5cm*54cm

-Net dimension:

375mm X 350 mm X 80mm



Weight

-Gross weight

18 kg

-Net weight

6.3 kg



Power Requirements

-Voltage: AC 100V to 240V

-Frequency: 47~63Hz

-Rated Power: ≤120VA



Operation Conditions

-Ambient temperature: 0℃to +40℃

-Relative humidity: 38% to 85%

-Atmospheric Pressure: 700hPa to 1060hPa



Software & Accessories


Optional Accessories

-3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

-7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)

-3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)

-6.5Mhz transvaginal probe (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)

-4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)



-B/W or color Video printer

-LaserJet or inkjet printer

-Trolley

-Aluminum case

-Biopsy guide

906E Standard Configuration:

Item
Model
Qty
Remark
1
Main unit of 906E with Build-in battery
1
2
3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz) with CW function
1
3
System Recovery U Disc
1
4
Power Line
1
5
Aluminum suitcase
1

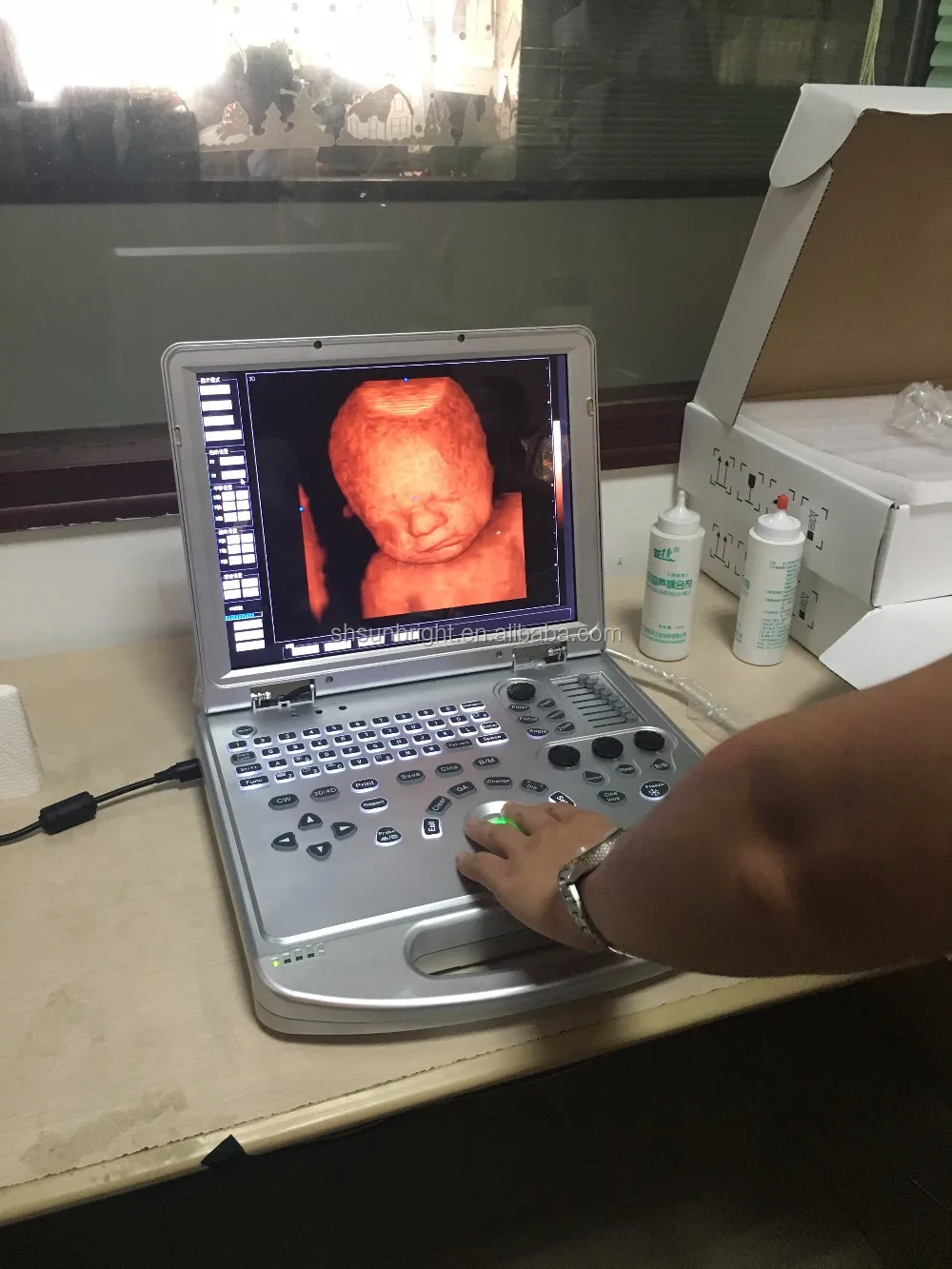

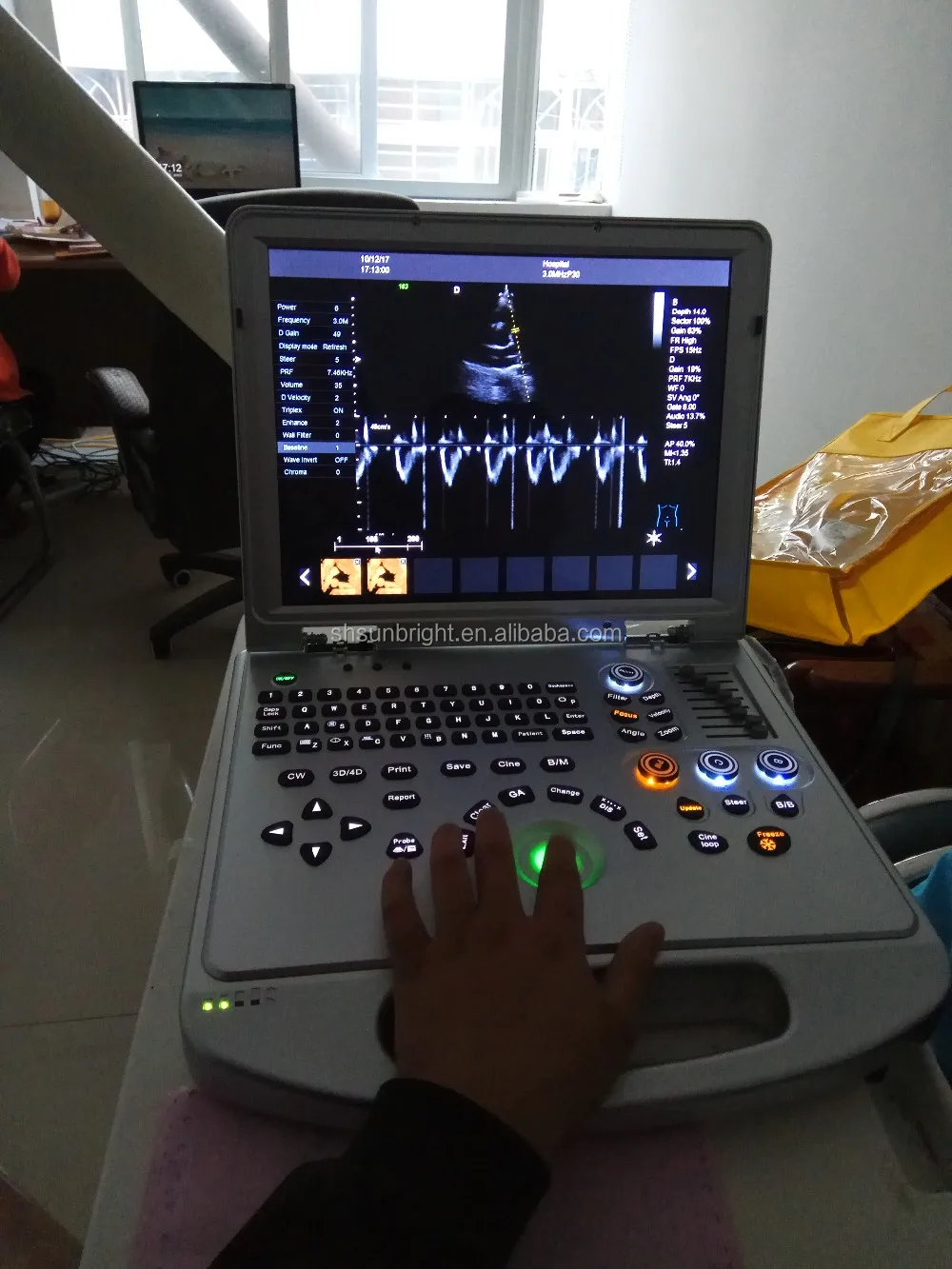

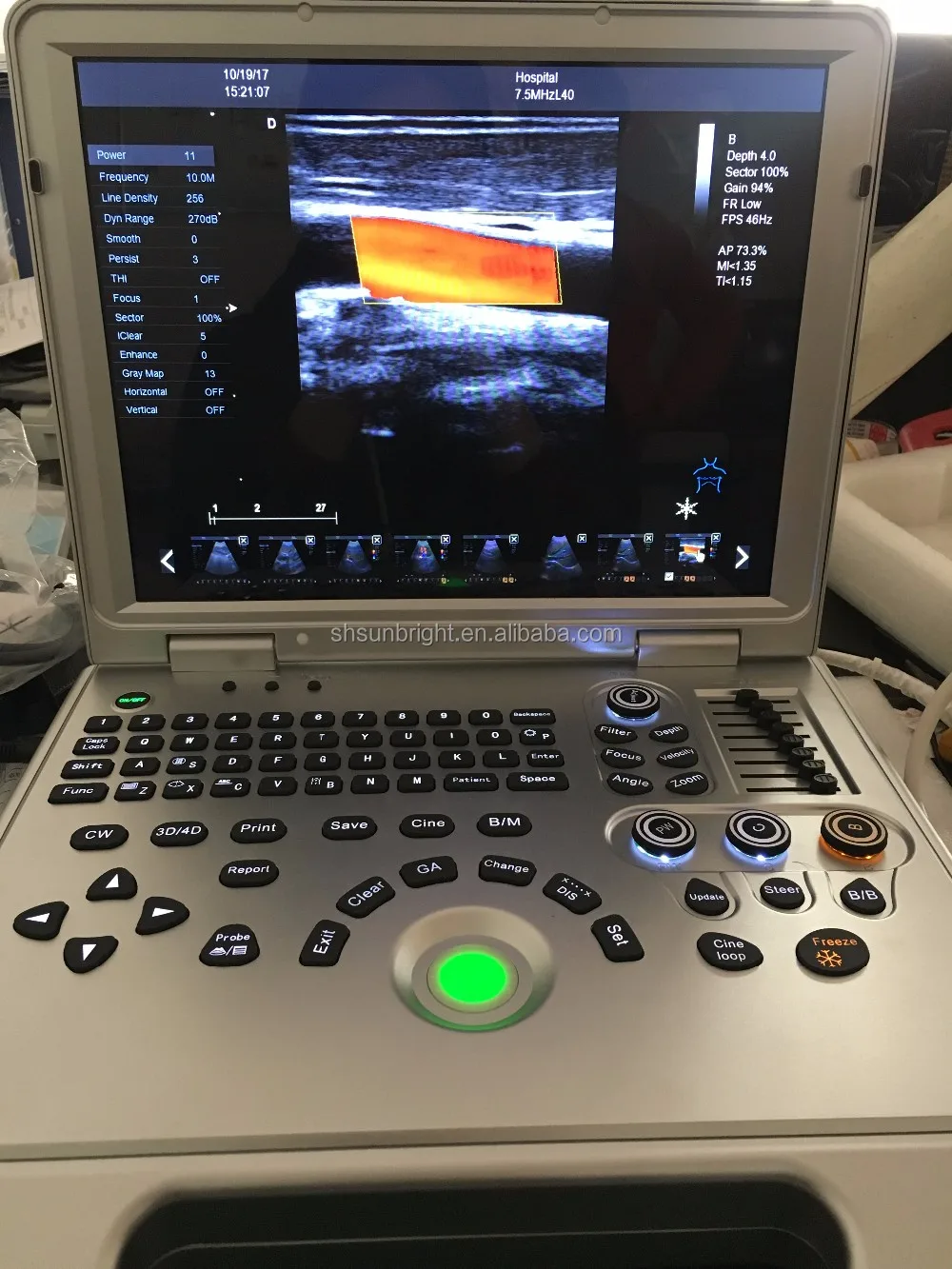

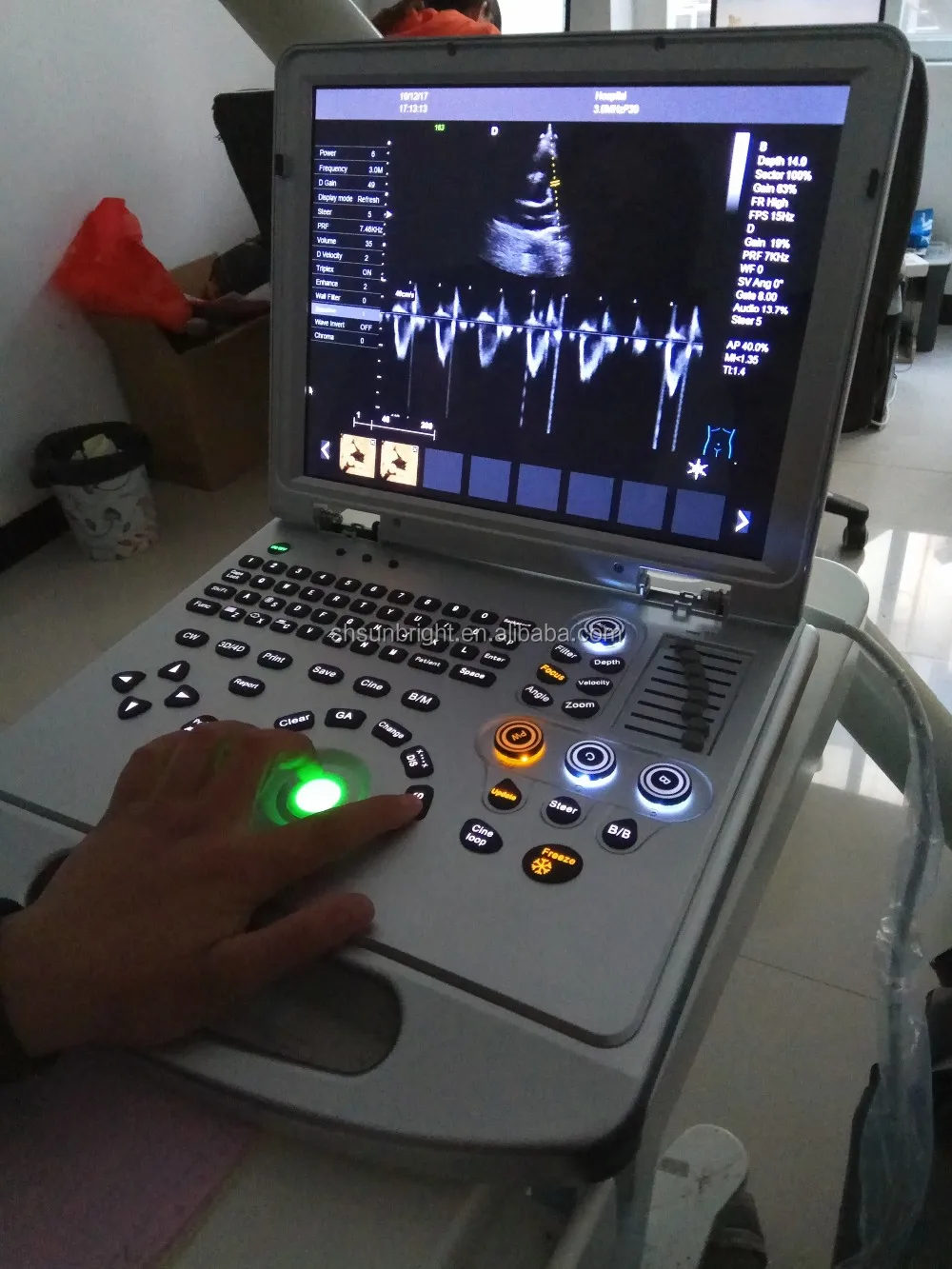

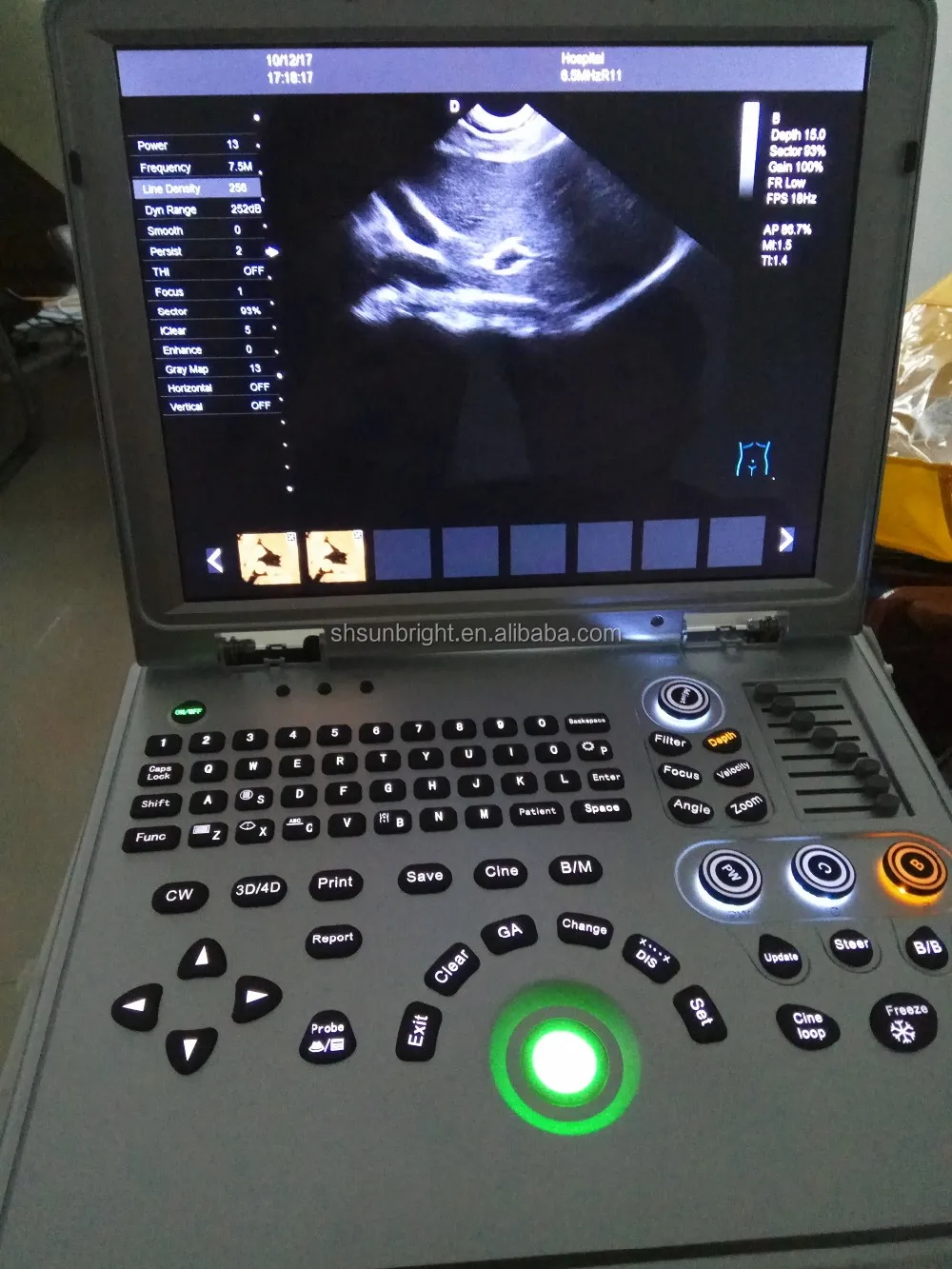

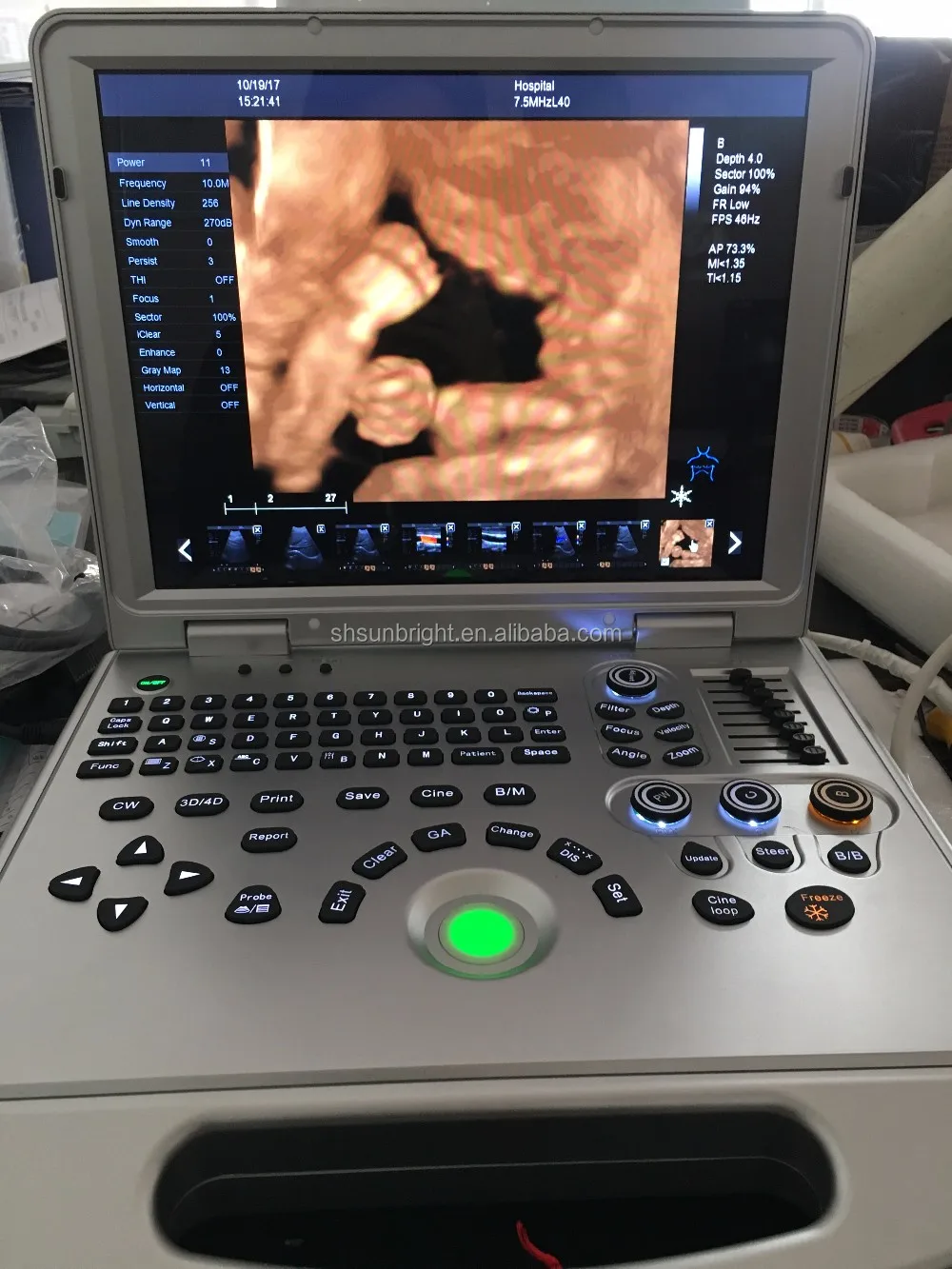

Detailed Images

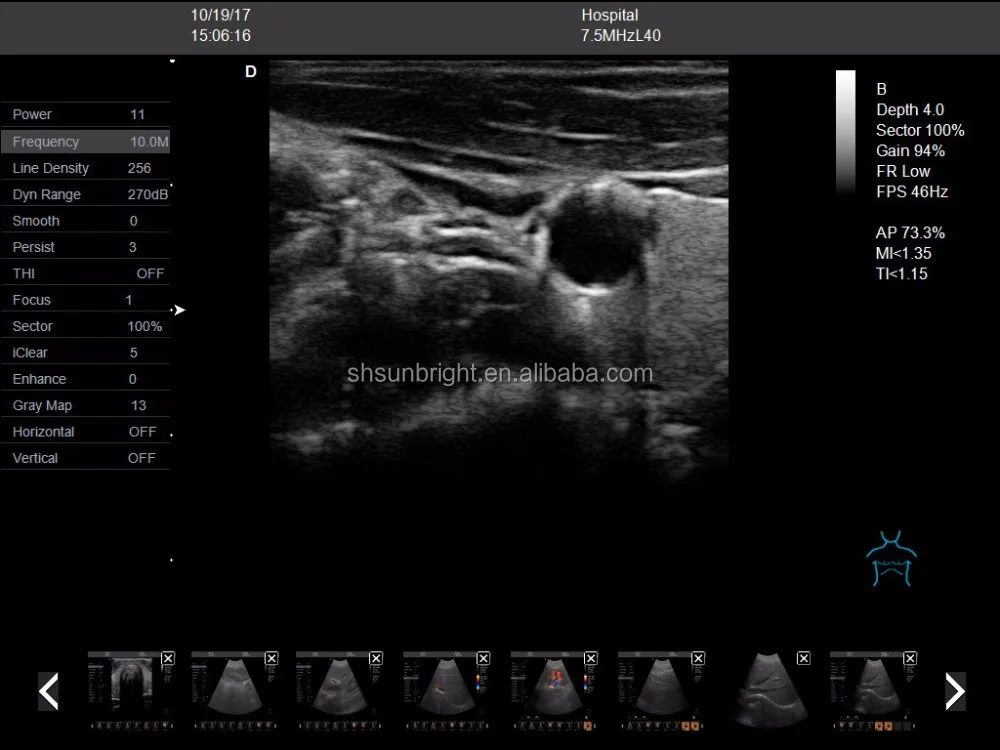

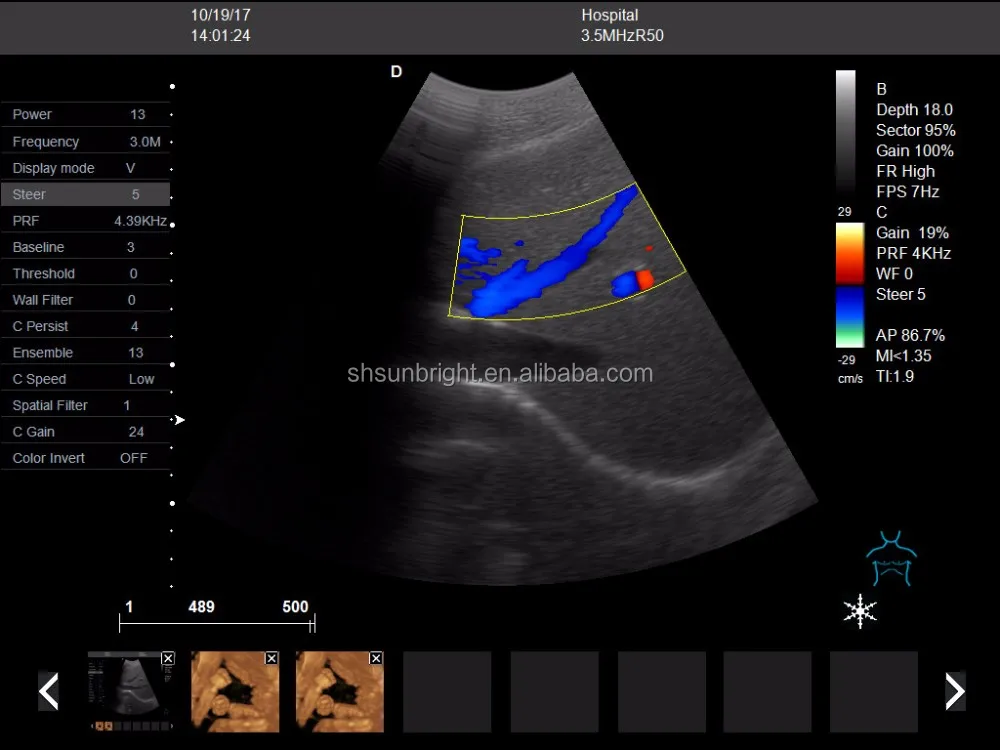

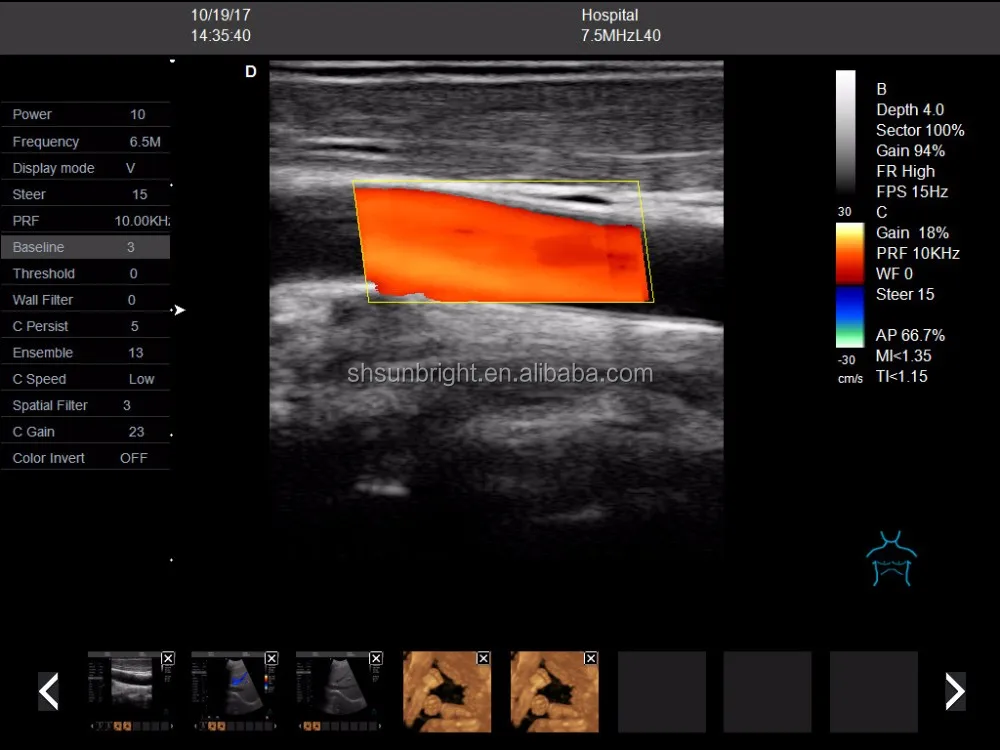

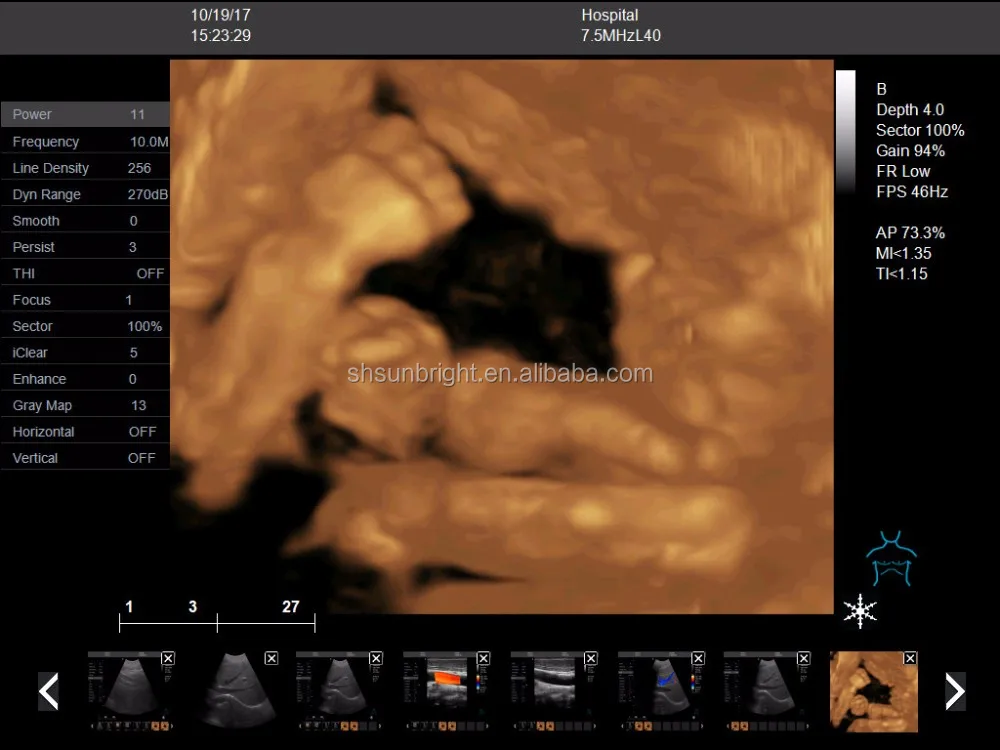

Scanning Images:
