portable 3 channel 12 lead ECG electrocardiogram EKG machine

FOB Reference Price:Get Latest Price
US $299-550 / Units | 1 Unit/Units portable 3 channel 12 lead ECG electrocardiogram EKG machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Pathological Analysis Equipments, 3 channel 12 lead ECG electrocardiogram EKG machine
Brand Name:
Sunbright
Model Number:
SUN-7031
Place of Origin:
Shanghai, China (Mainland)
Display:
4.3 inch color touch screen
Ports: RS232/USB:
yes
rechargeable Li-ion battery:
yes
Working modes:
Simultaneously 12 leads acquisition
freeze function:
yes
Li-ion battery:
yes
Touch screen:
yes
Supply Ability
Supply Ability:
20000 Unit/Units per Year portable 3 channel 12 lead ECG electrocardiogram EKG machine
Packaging & Delivery
Packaging Details
Sea-worthy packing/Air-worthy packing for portable 3 channel 12 lead ECG electrocardiogram EKG machine
Port
Shanghai/Shenzhen
Lead Time :
Within 3 working days
Product Description

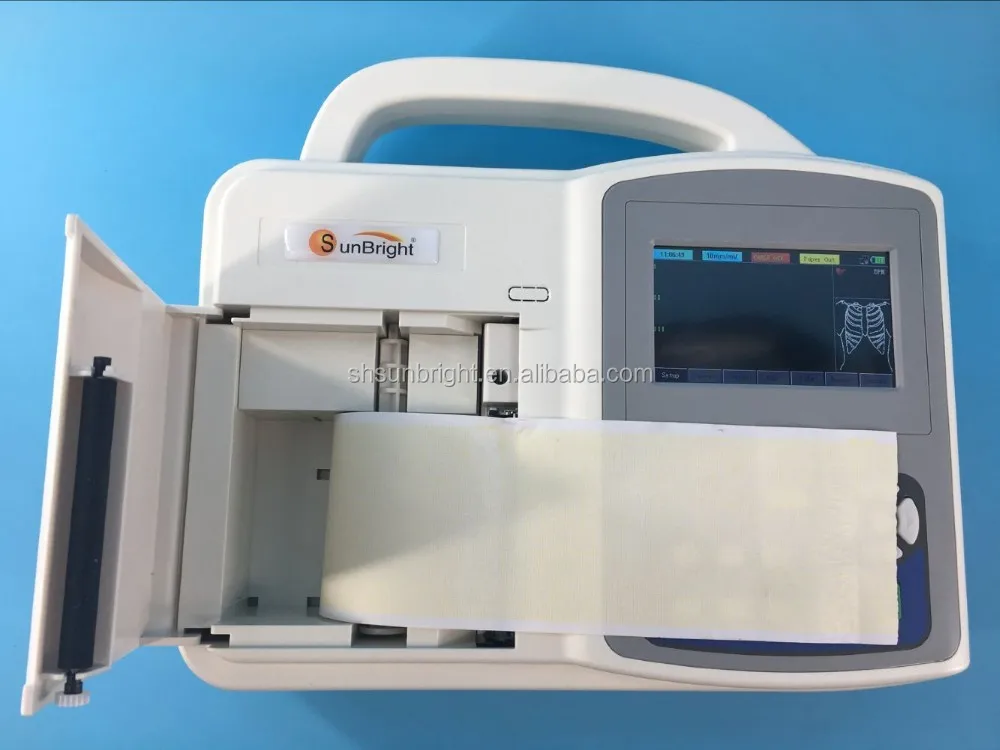

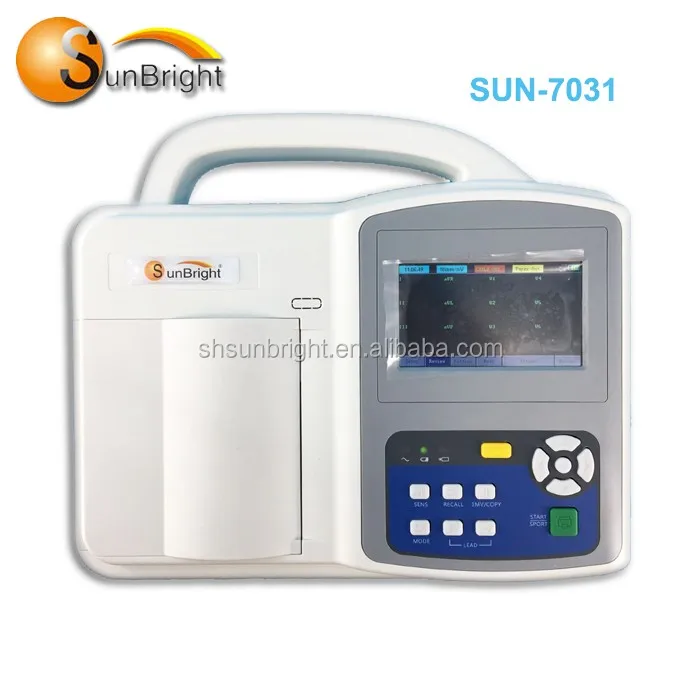

portable 3 channel 12 lead ECG electrocardiogram EKG machine

Touch Screen Function

Detailed Features
Features

3 channel ECG machine with interpretation

Manual/Auto/Arrhythmia Analysis Modes

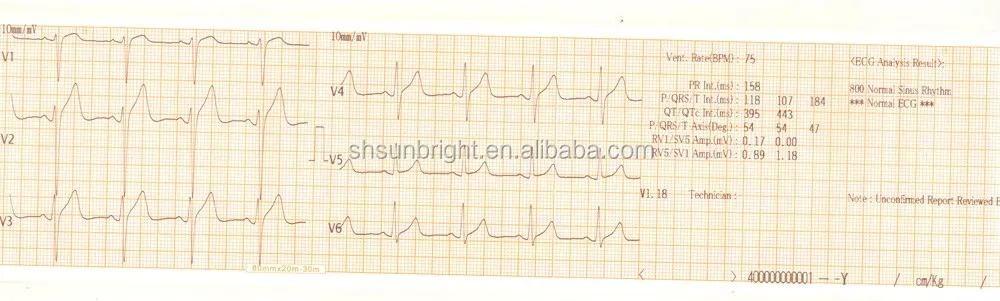

80mm 3-ch recording with rhythm lead

Built in rechargeable Li-ion battery

4.3" color LCD Touch Screen display

Adaptor 110-230V, 50/60Hz AC power supply

Built in USB/RS232 interface(ECGNET software Optional)


Technical Specification

Lead:standard 12 leads

Calibrating voltage: 1mV±2%

Voltage tolerance: ≥±500mV

Time constant: ≥3.2s

Frequency response: 0.05~160Hz(-3db)

Noise level: <15μVp-p

Sensitivity valve: ≤20μV

Sensitivity: 2.5, 5, 10, 20mm/mV

Inter-channel Interference: ≤0.5mm

Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)

Input dynamic range:±10Vpp

Filter: AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥120dB (with AC filter)

Input Impedance: ≥50MΩ

Input circuit current: ≤0.05μA

Patient current leakage:<10μA

Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

Work modes: MAN,AUTO,ANALYSIS modes

Input circuit: floating; protection circuit against defibrillator effect

Display: 4.3 inch colour LCD

ECG waveform,100 patient save/replay

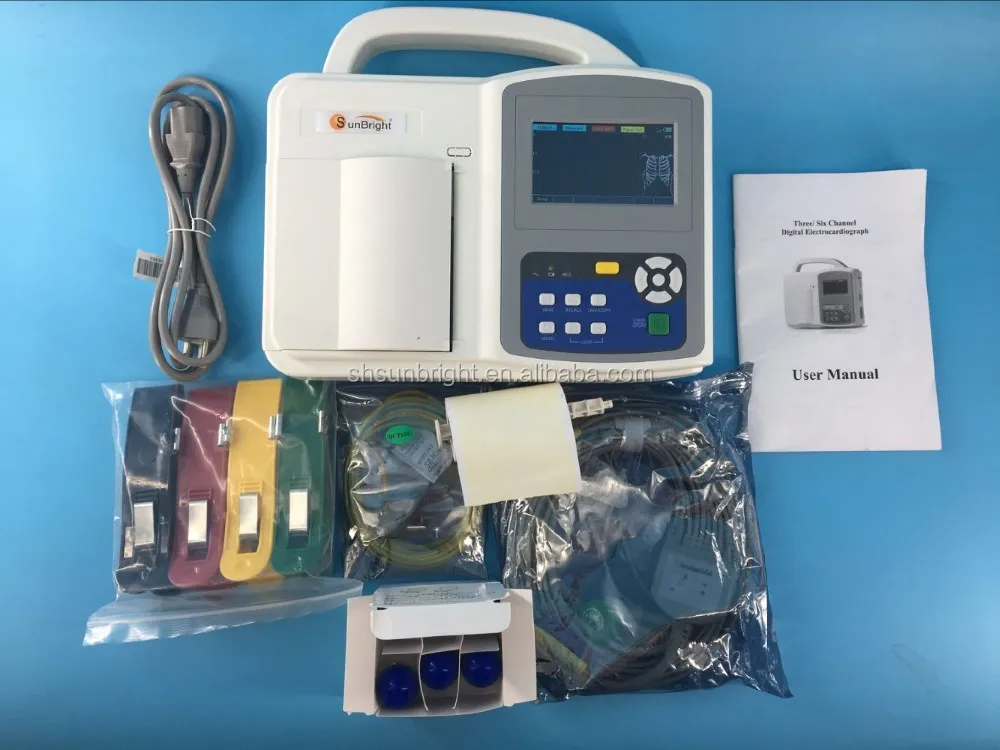

Standard Configuration


Patient cable
1set
Limb electrode
4sets
Chest elelctrodes
6sets
Gounding cable
1set
Paper axis
1set
Thermal paper
1set
Fuse
2sets
3-cord power cord
1set
AC Adaptor
1set
