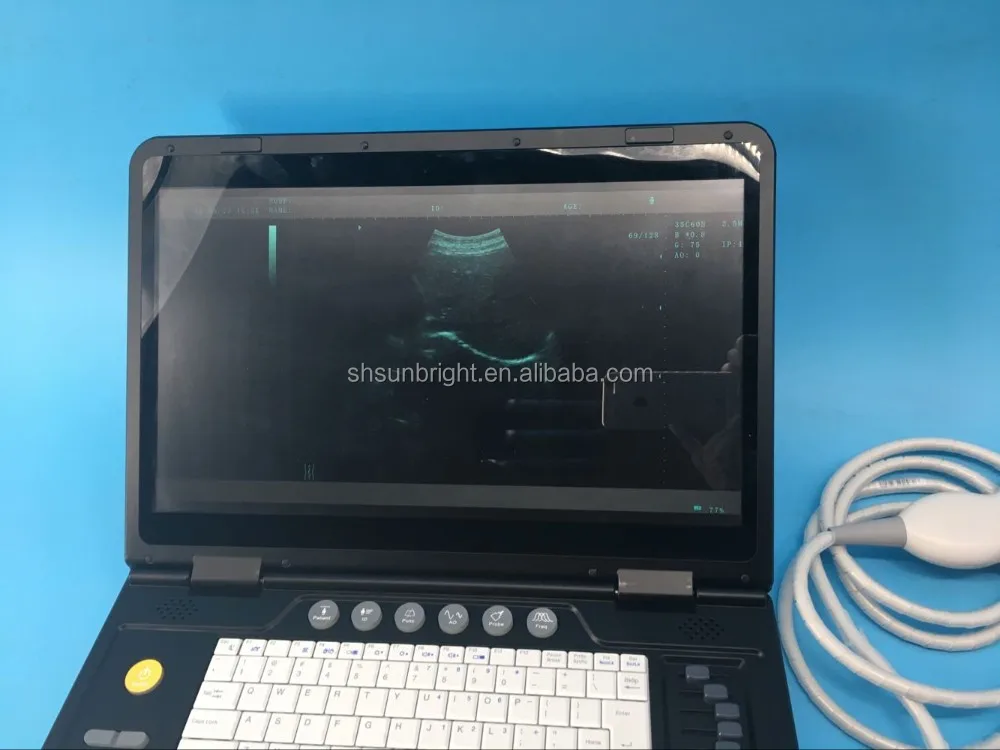

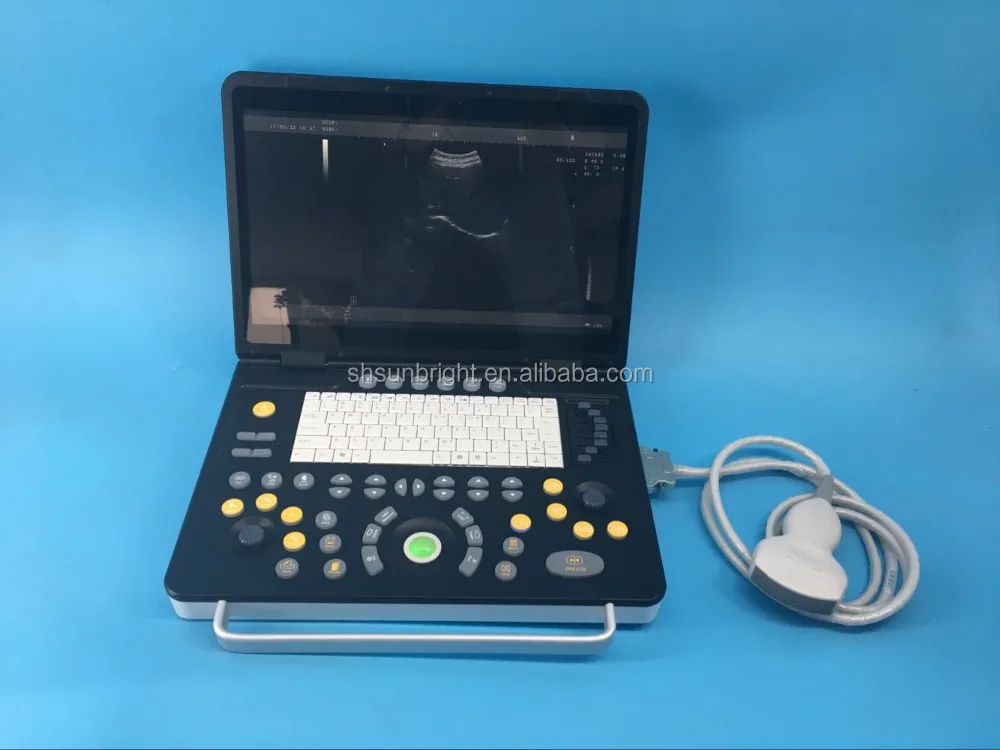

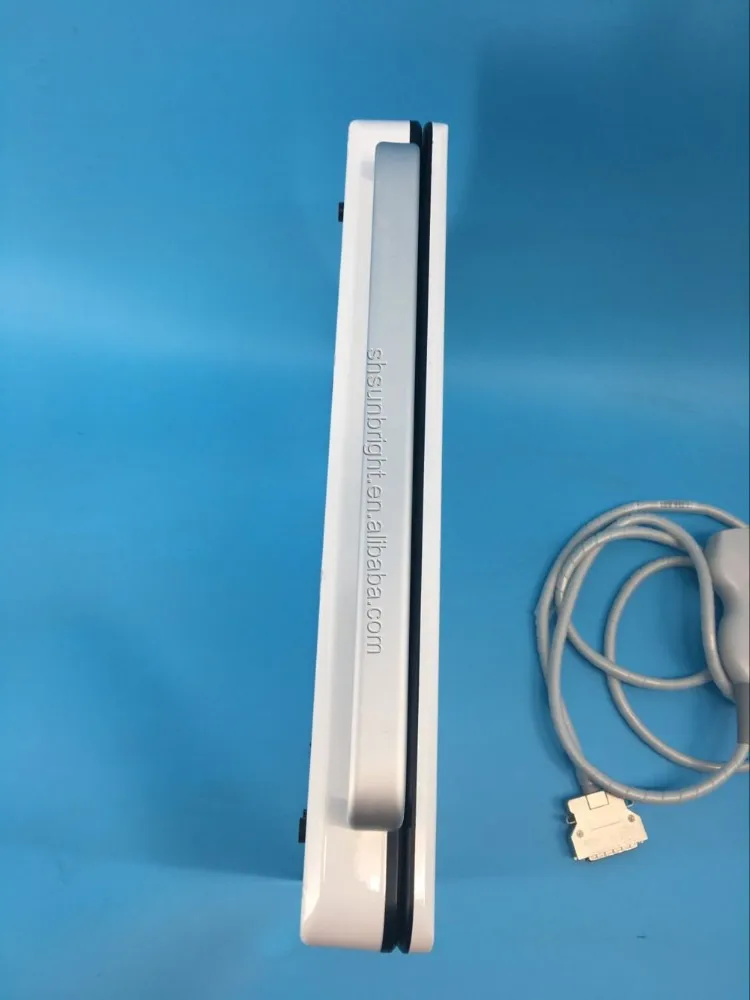

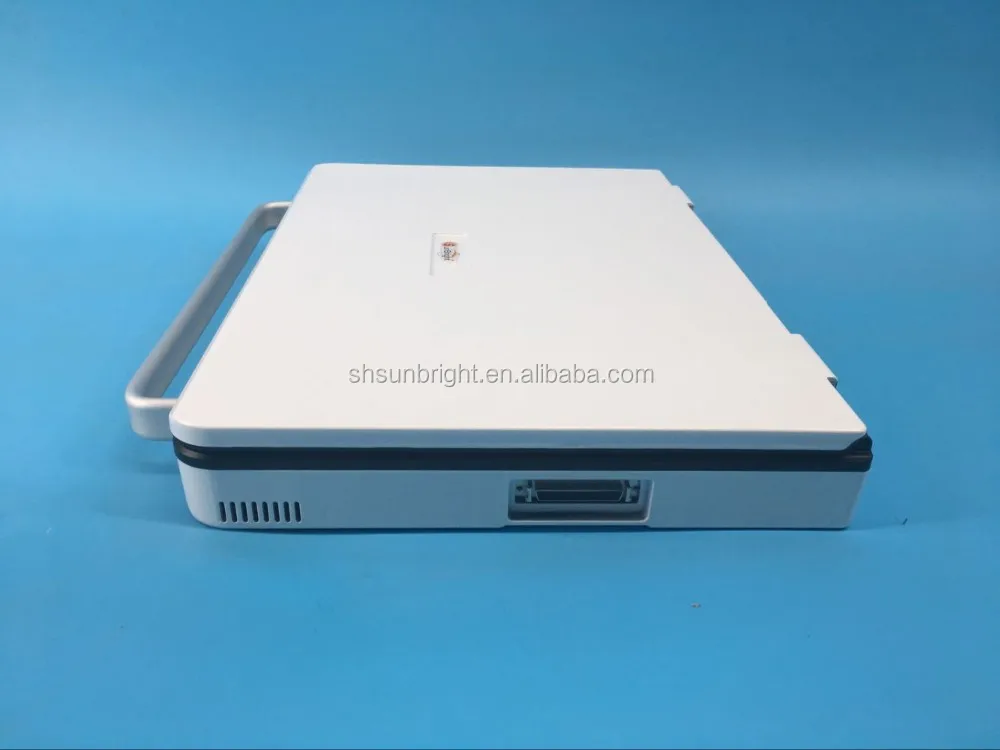

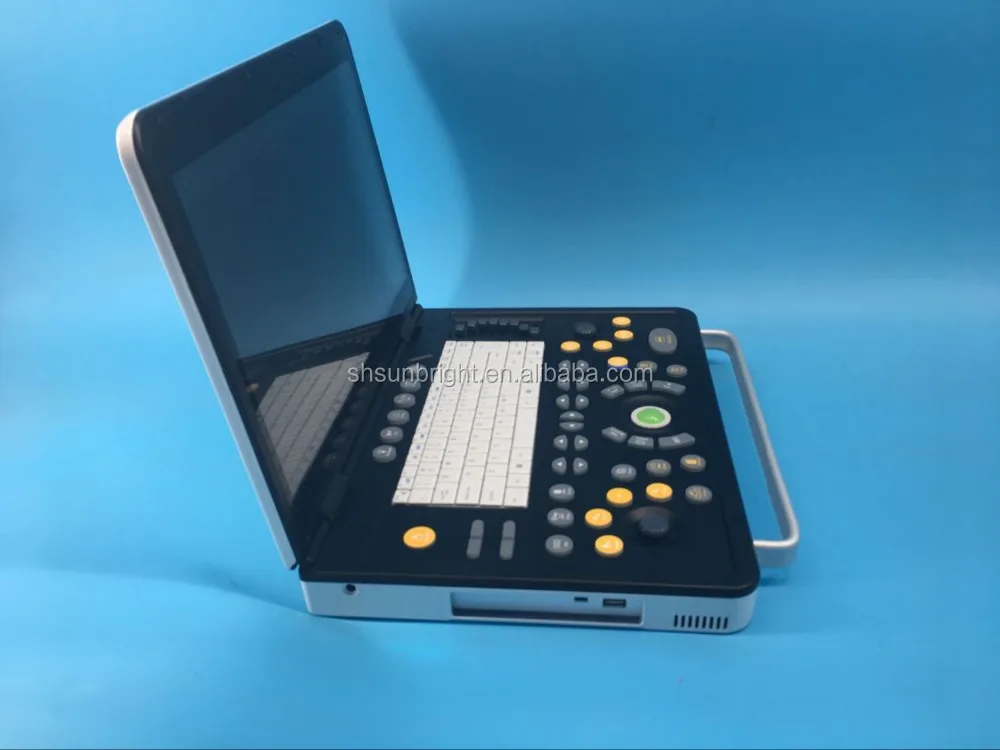

Portable Ultrasonic Diagnostic Devices, CE ISO approved laptop OB/GYN ultrasound scanner with high quality
Place of Origin:
Shanghai, China (Mainland)
battery work time:
more than 3 hours

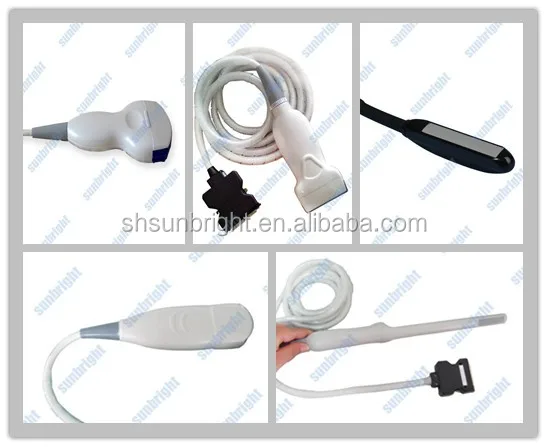

convex probe, linear probe, transvaginal probe, micro-convex probe
general, OB/GYN, cardiology, urinary, small organs, etc.
20000 Unit/Units per Year CE ISO approved laptop OB/GYN ultrasound scanner with high quali
Packaging & Delivery
Sea-worthy packing/Air-worthy packing for CE ISO approved laptop OB/GYN ultrasound scanner with high quality
within 3 days after full payment
CE ISO approved laptop OB/GYN ultrasound scanner with high quality
1.Color 15' LCD monitor with high resolution, USB port; 2.Light weight of 2.0kgs, and Laptop design;
3. U Disk for upgrade. 4.Built-in battery can drive the main unit to work for more than 3 hours; 5. General, OB/GYN, cardiology, urinary, small organs, and so on 6. VGA Outpout,AV Outpout，working station, connect with computer, external monitor and HP printer directly
7. Connect with Jet printer, Laser printer, and Video printer to print directly.
8.Computer bag or Aluminum suitcase for optional
9. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
B, B/B, 4B, B+M, M;
Image multiplying factor
×0.8, ×0.9, ×1.0, ×1.1 ×1.2, ×1.3, ×1.4, × 1.5
M type speed
M type scanning has eight kinds of speed can be selected.
Local x 2.0 magnification rate
2.5mhz to 8.5mhz
Number and location of the focus can be adjusted.
Distance, Circumference/Area (method of ellipse, method of loci), Volume, Heart rate, Gestational Weeks (BPD, GS, CRL, FL, HC、AC), Expected date of confinement and Fetus weight, etc.
Hospital name, Patient’s name, Age and Gender;
35 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
3.5MHz convex array probe can display puncture guide line in B mode.
8 segments TGC and overall gain can be adjusted respectively.
left and right flip, black and white flip, up and down flip.
series playback or check one by one
γ correction, Frame correlation, Point correlation, Line correlation, Digital filtering, Digital Edge Enhancement and Pseudo Color Processing, etc.
