SUN-806H 2D obstetric test ultrasonic machine/veterinary ultrasound machine

FOB Reference Price:Get Latest Price
US $100-1,000 / Units | 1 Unit/Units 2D obstetric test ultrasonic machine/veterinary ultrasound machi (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Portable Ultrasonic Diagnostic Devices, 2D obstetric test ultrasonic machine/veterinary ultrasound machine
Brand Name:
Sunbright
Model Number:
SUN-806H
Place of Origin:
Shanghai, China (Mainland)
Instrument classification:
Class II
battery:
li-ion
battery work time:
more than 3 hours
Cineloop:
192 frames
Storages:
128 images
USB ports:
2
probe frequency:
2.5MHz-10.0MHz
Probe:
convex probe, linear probe, transvaginal probe, micro-convex probe
application:
general, OB/GYN, cardiology, urinary, small organs, etc.
Supply Ability
Supply Ability:
20000 Unit/Units per Year 2D obstetric test ultrasonic machine/veterinary ultrasound machi
Packaging & Delivery
Packaging Details
Sea-worthy packing/Air-worthy packing for SUN-806H 2D obstetric test ultrasonic machine/veterinary ultrasound machine
Port
Shanghai
Lead Time :
within 3 days after full payment
Product Description

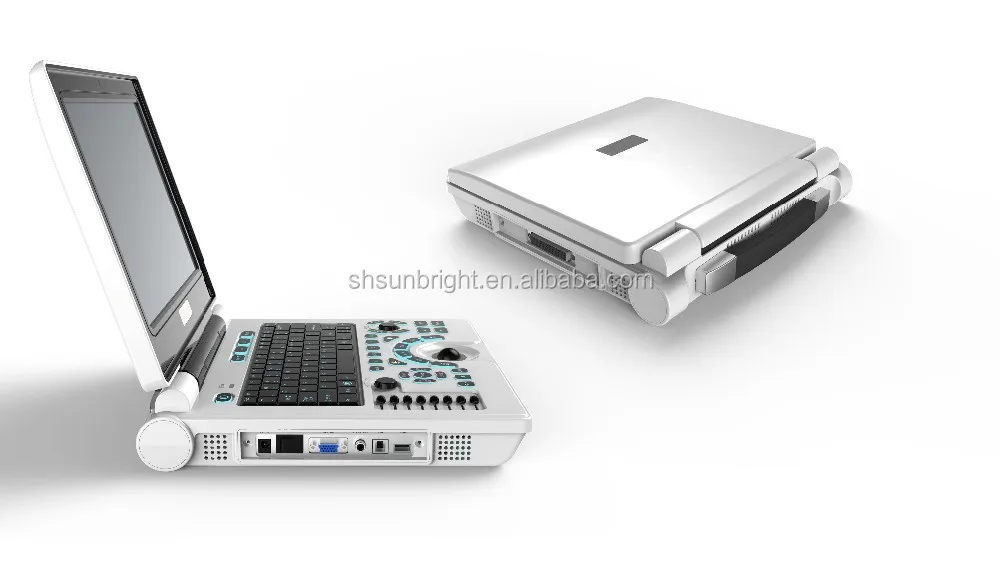

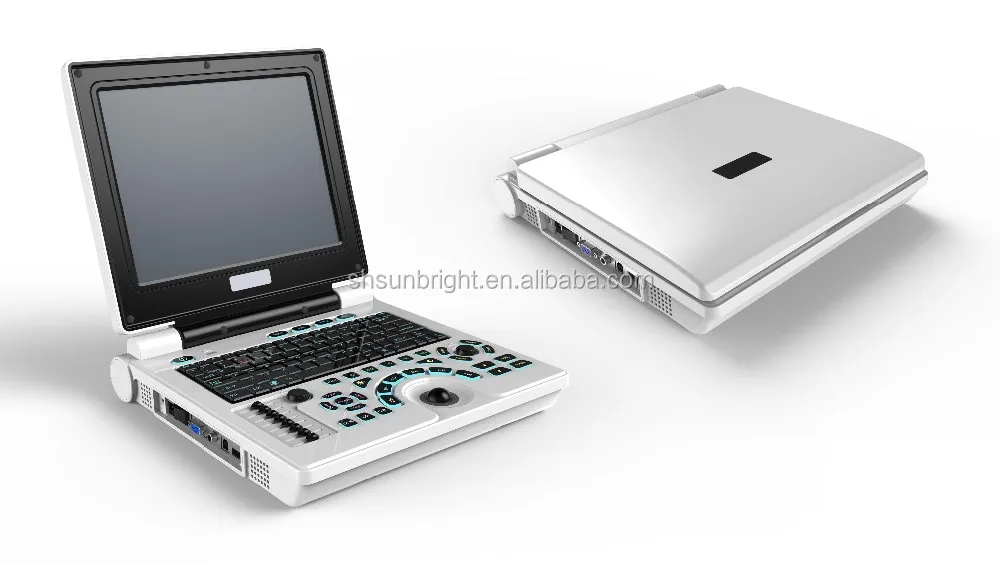

SUN-806H 2D obstetric test ultrasonic machine/veterinary ultrasound machine


Main features:

1.Color 12.1' LED monitor with high resolution, USB port;
2.Light weight of 2.5kgs, and Laptop design;
3.Built-in battery can drive the main unit to work for more than 3 hours;
4. General, OB/GYN, cardiology, urinary, small organs, and so on
5. VGA Outpout,AV Outpout,working station, connect with computer, external monitor and HP printer directly

Main Specifications
Scanning mode
electronic scanning
Display modes
T35R60GB convex array probe: B, B/B, 4B, B+M, M;
T50R20GB type micro convex probe: B, B/B, B+M, M;
T65R13GB type cavity probe: only B;
T75L40GB type linear array probe: only B;

Image multiplying factor
35R60GB convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0;
×0.8, ×2.0 (display penetration depth);
T65R13GB type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.

M type:
M type scanning has eight kinds of speed can be selected;
M mode or B+M mode :When the heart rate of more than 100, measurement error will increase

Zoom
Local x 2.0 magnification rate
Dynamic range
0~120dB adjustable
Frequency
T35R60GBconvex array probe real-time
scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GB type cavity probe/ T75L40GB type linear array probe real-time scan:
5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.

Focus position
Sending: 1, 2, 3 and 4-segments dynamic electronic
focusing; when 1、2-segments focus, the focus can be
moved.

Receiving: receive real-time dynamic focus by focus
Measuring function
Distance, Circumference/Area (method of ellipse,
method of loci), Volume, Heart rate, Gestational Weeks
(BPD, GS, CRL, FL, HC、AC), Expected date of
confinement and Fetus weight, etc.
Annotation function
Hospital name, Patient’s name, Age and Gender;

64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display;
Puncture guide
3.5MHz convex array probe can display puncture guide
line in B mode.
Gain control
8 segments TGC and overall gain can be adjusted
respectively.
Image polarity
left and right flip, black and white flip, up and down flip.
Permanent storage
≧128 images.
Image playback
series playback or check one by one
Image processing
γ correction, Frame correlation, Point correlation, Line
correlation, Digital filtering, Digital Edge Enhancement
and Pseudo Color Processing, etc.
USB interface
Only for U disk storage image, image format is BMP.
Output interface
SVGA video output offers connection to SVGA color display; workstation, etc.
PAL video output offers connection to PAL display, video image recorder and image.




Optional probes:

T50R20GB type micro convex probe;
T65R13GB type cavity probe;
T75L40GB type linear array probe;

Other Specifications:

Name
Specifications
Display
12.1 inch LED display.
Grey scale
256 levels
Running hours of Battery
≥8 hours
The battery pack continuous working time
≥2h
Input power
AC 110V/220V±22V,1.5A
Battery
2500 mAh
Net weight
2.5 kg
Size of Main unit
309 ×312 × 68(L×W×H)(mm3)

806H Standard Configuration:

Item
Model
Qty
Remark
1
Main unit of 806H
1
2
T35R60GB convex array probe
1
3
Battery Adaptor
1
4
Power Line
1
