128 elements USB Type C ultrasound probe for hospital/Wireless probe

FOB Reference Price:Get Latest Price
US $100-1,500 / Units | 1 Unit/Units (Min. Order)
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

Graphic customization (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Doppler Ultrasound Equipment, 128 elements USB Type C ultrasound probe for hospital
Brand Name:
Sunbright
Model Number:
Sun-P2
Place of Origin:
Shanghai, China (Mainland)
Instrument classification:
Class II
Operating system:
Android System
Probe elements:
128 elements
Frequency:
4-11MHz (7.5central)
Imaging mode:
B-Mode, PW-Mode
System scanning depth:
≤70mm
Port:
micro USB3.0/2.0
Aperture:
38mm
Ultrasound software:
YES
PW function:
Optional
Supply Ability
Supply Ability:
20000 Unit/Units per Year 128 elements USB Type C ultrasound probe for hospital

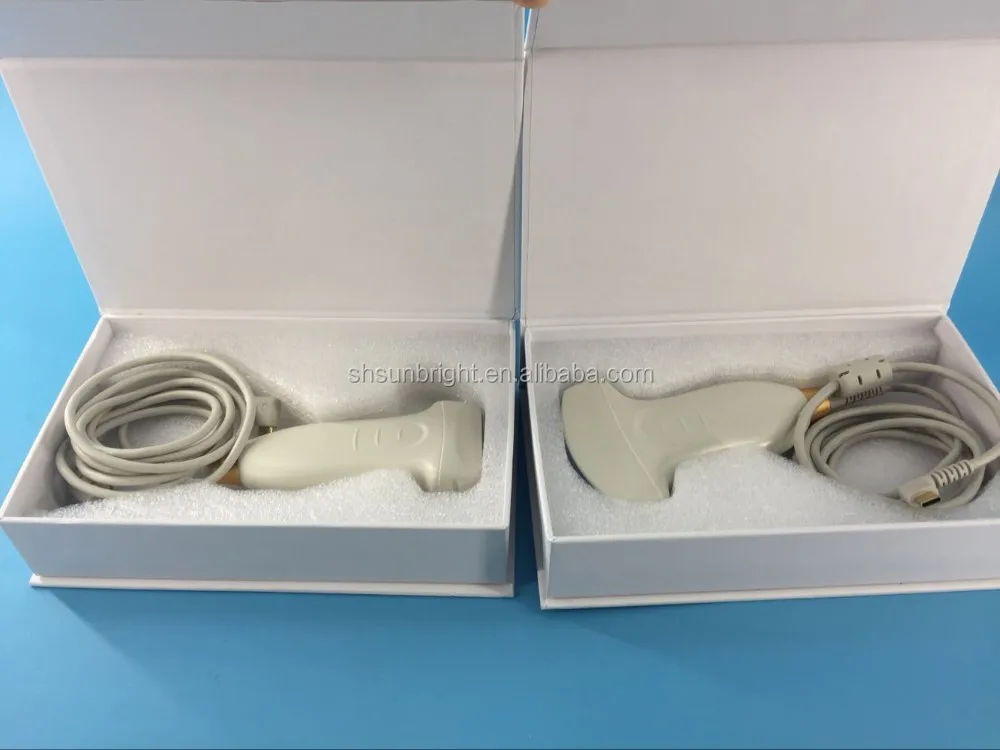

Packaging & Delivery
Packaging Details
Sea-worthy packing/Air-worthy packing for 128 elements USB Type C ultrasound probe for hospital
Port
Shanghai
Product Description

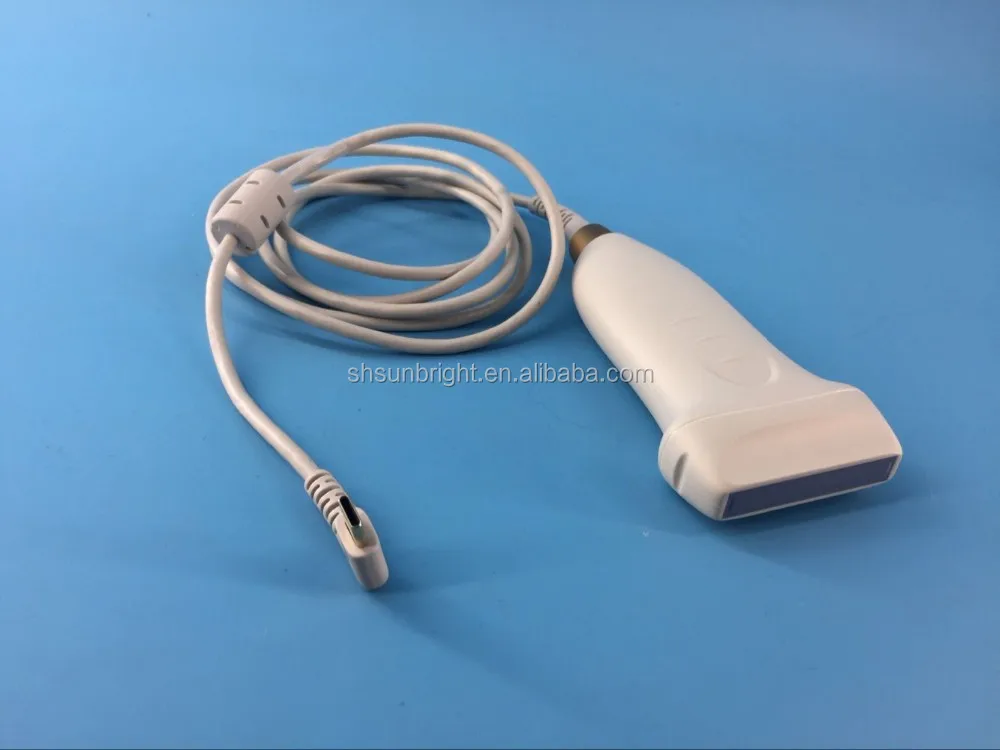

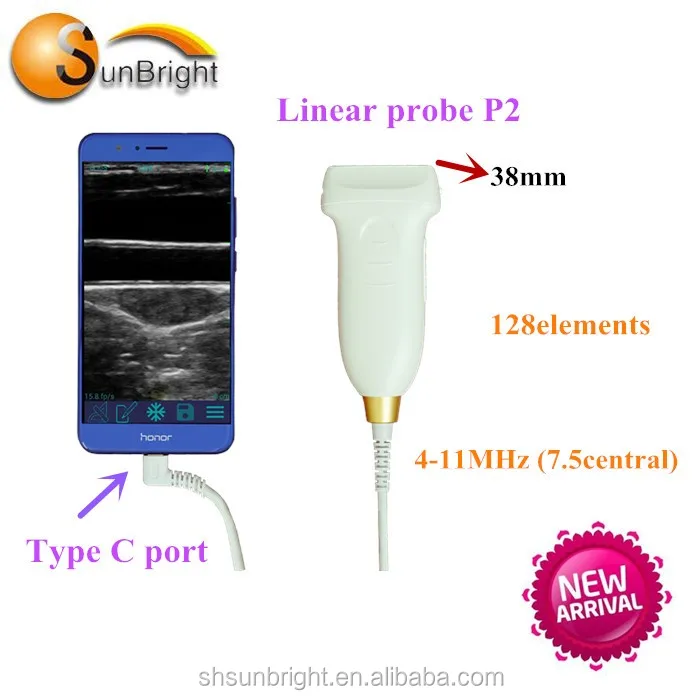

128 elements USB Type C ultrasound probe for hospital/Wireless probe


System Description:



Sun-P2 is an ergonomically designed portable and ease-of-use pocket ultrasound system for multi-specialty uses, such as adults, pregnant women, pediatric patients and neonates. It is intended for use in peripheral vascular, anesthesia, small parts, MSK, athletic medical, abdominal, gynecology, obstetrics, urological, ICU.

Dimensions and Weight

Width: < 135mm

Depth: < 80mm

Height: < 30mm

Weight: < 150g

Operating Environment



Ambient temperature: 10~30 deg

Relative humidity: <80%

Atmospheric pressure: 700 hPa~1060 hPa


Storage & Transportation Environment



Ambient temperature: -20~55 deg

Relative humidity: <95%

Atmospheric pressure: 700 hPa~1060 hPa

Transducer Types & Scanning Methods

Transducer Types

1.Linear array transducer

2.Convex array transducer

3.Phased array transducer(coming soon)



Scanning Methods

1.Electronic linear

2.Electronic convex

3.Electronic sector

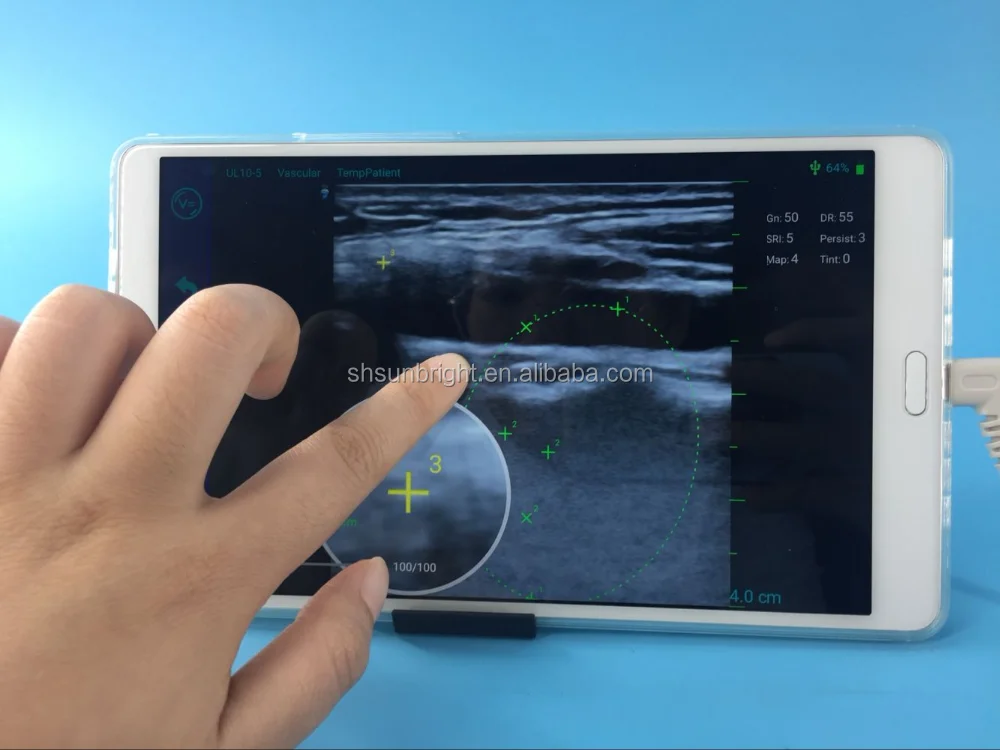

System software application

Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology


Measure

Distance

Area

Volume

Ratio (distance or area)

OB measure package

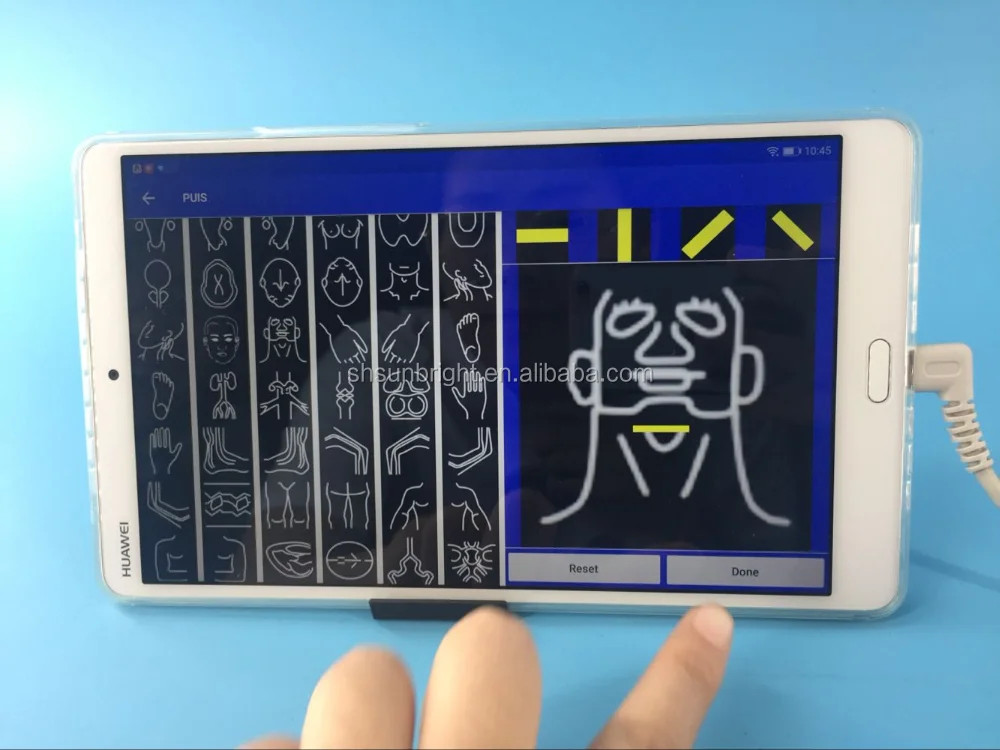

Body mark


Annotations

Text
Arrow
Ellipse
Rectangle



Technical Parameter

Power consumption:1W

Imaging mode: B-Mode, PW-Mode (probe dependent)

Frequency: Linear(4-11MHz/5-14MHz) Convex(3-5MHz)

Probe element: 128 elements

Gray scale level: 256

Dynamic range:>120dB

Maximum frame rate: 20 FPS (probe dependent)

Cine review: 100 frames

System scanning depth:

linear probe: ≤70mm

Convex probe: ≤240mm

Image Save: JPG, DICOM

Port: micro USB3.0/2.0



Compatible Device:

Android System:

Huawei P10, Honor 9, Mate 9...

Samsung S8, S9, Note8...

LG:V20, G6...



Windows:

OS≥windows 8.1, CPU≥Intel CoreM

Detailed Images

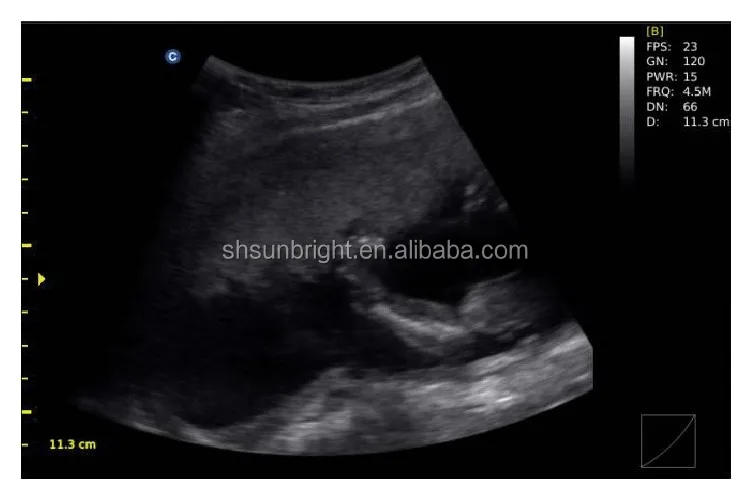

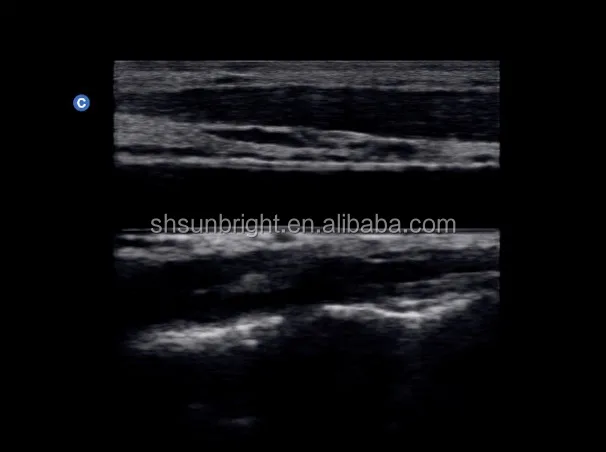

Scanning Images:

Production Line:
